TI-N405IP-V10
Network 10x Optical Zoom Ambarella SOC PTZ camera
1/2.9" 2.1MP Sony Exmor CMOS Sensor
Ambarella SOC Solution
10x Optical Zoom,Auto Iris
Tilt Rotation Range: -5〫 ~55
Pan Speed: 0.5〫~12 〫/s
Tilt Speed: 0.5〫~10 〫/s
Preset Position: 256
Double ICR,WDR,ROI,OSD Menue
Support ONVIF HIKVISION private etc protocals

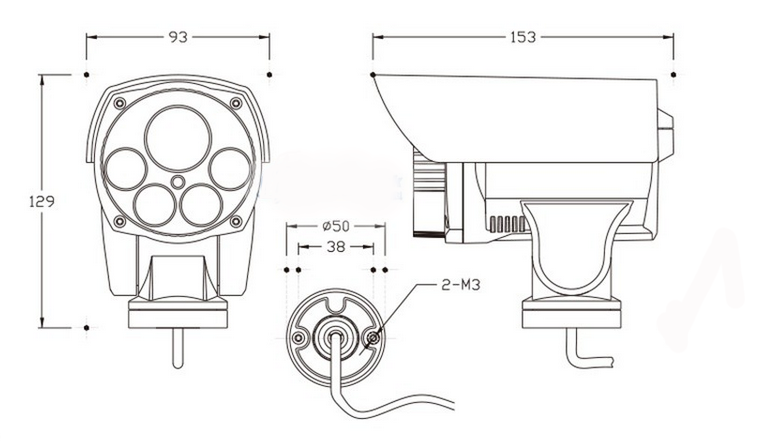

Size:153mm×93mm×130mm
N.W:960g
|
|
Model
|
TI-N405IP-V10
|
|
Camera
|
Image Sensor
|
1/2.9" Progressive Scan Sony CMOS
|
|
Mini Illumination
|
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
|
|
Electronic Shutter Speed
|
1/25-1/100,000S
|
|
Lens
|
5.1~51mm
|
|
Day/Night
|
IR-CUT
|
|
IR LEDS
|
4 high power array LEDs with IR
|
|
IR Distance
|
80-100 meters
|
|
Noise Reduction
|
3D
|
|
Compression
|
Compression solution
|
Ambarella A5S66 Soc
|
|
Compression standard
|
H.264/MJPEG
|
|
H.264 Cord Type
|
BaseLine Profile / Main Profile
|
|
Bit Rate
|
1000Kbps~6000Kbps
|
|
|
Max. Photo
|
1920X1080
|
|
Resolution
|
50Hz: 25fps (1920 × 1080); 60Hz: 30fps (1920 × 1080)
|
|
Picture Set
|
Saturation, brightness, contrast adjustable through client
|
|
software or IE browser
|
|
BLC
|
Support,
|
|
PTZ
|
Horizontal rotation angle
|
0°~300°
|
|
Vertical rotation angle
|
-5°~60°
|
|
Horizontal rotation speed
|
0.5°~24°/ s
|
|
Vertical rotation speed
|
0.5°~24°/ s
|
|
Presets
|
16
|
|
Network
|
Storage
|
NAS(NFS,SMB/CIFS
|
|
Port protocol
|
ONVIF,PSIA,CGI,ISAPI
|
|
Alarm
|
Motion detection,Dynamic analysis,Occlusion alarm
|
|
Protocol
|
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
|
|
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
|
|
Common Functions
|
Prevent flashing, Dual-stream, Heartbeat, ,mirror image , watermark
|
|
Password protect, , Private masking
|
|
Port
|
Communication Interface
|
1pc RJ45 10M / 100M Ethernet
|
|
1pc RS232 1pc RS485
|
|
Other
|
Working Environment
|
-30°C to 60°C,humidity<95%(No condensation)
|
|
Power supply
|
DC12V±10%
|
|
Power consumption
|
6.5W MAX(ICR switch moment 8.5W)
|
|
Waterproof
|
IP66
|
|
Bracket
|
Wall install bracket
|
|
Size(mm)
|
153×93×130
|
|
Weight
|
960g
|
|
 |
|
|
|
