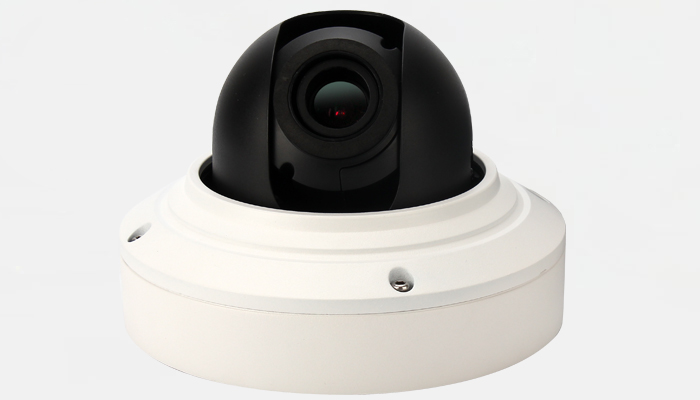

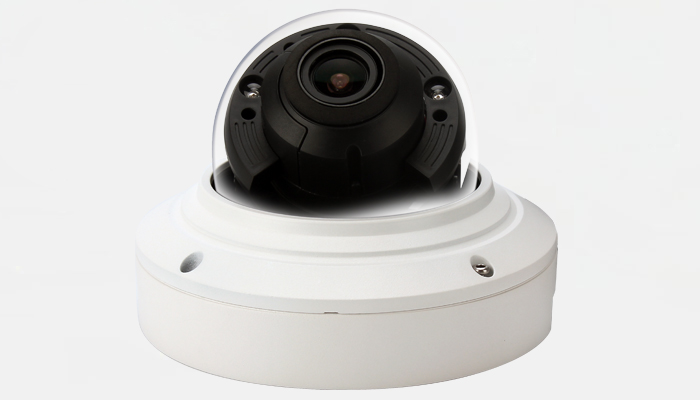

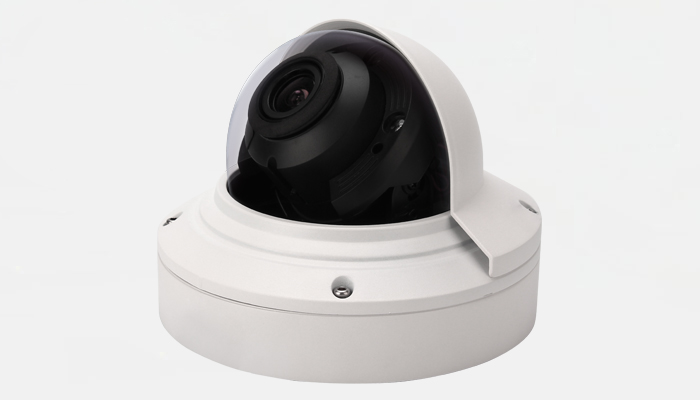

TI-N672M-89D
25fps&30fps 4MP 3.6-10mm Manual Lens 30M IR IK10 IP Camera
● 1/3" Progressive Scan CMOS
●4.0 Megapixel, 15fps@2592*1520, 15fps@2048*1520, 30fps@1920*1080
● 2.8-12mm(Manual), 3pcs IR Array LED for 30M, IR ON 0Lux, 110dB TWDR
● Support ONVIF Profile S, FTP, RTSP, UPnP etc.
● Support Dual-Stream, Mobile Surveillance, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
● Support POE, SD card slot(Max. 128G), Audio I/O, Dual Alarm In, Single Alarm Out, RS485, MIC, CVBS, RJ45, DC 12V/AC 24V
● Vandal-proof, Weather-proof, IK10 |
|
Hardware
|
|
SOC
|
Hi3516D
|
|
Sensor
|
1/3"
Progressive Scan CMOS
|
|
Effective Pixels
|
2592(H)×1520(V)
|
|
Interface
|
|
Optical lens
|
Interfaces
|
∮14
|
|
Iris
|
Fixed
Iris
|
|
Focal Length
|
2.8-12mm(Manual)
|
|
Audio Talkback
|
1ch MIC external access, 3.5mm
AV interface
|
|
Audio Output
|
1ch
speaker output, 3.5mm AV interface
|
|
Network Port
|
Lan
|
10/100M BASE-TX,
RJ-45 connector
|
|
RS485
|
1*RS485
interface
|
|
Alarm
I/O
|
2ch
alarm input, 1ch alarm output
|
|
Micro
SD
|
Micro
SD, Max. 128G
|
|
Audio&Video encoding
|
|
Video
Compression
|
H.265/H.264/MJPEG
|
|
H.265 encoding: Main Profile
|
|
H.264 encoding: High Profile/Main
Profile/Baseline
|
|
Resolution
|
Main
Stream
|
2592*1520/2048*1520/1920*1080;
1~30fps(adjustable)
|
|
Sub Stream
|
704*576/640*480/640*352/320*240;
1~30fps(adjustable)
|
|
Video Bitrate
|
30Kbps～16Mbps, Supports CBR/VBR
|
|
OSD Settings
|
Text
overlay supported like title, time, date, week, bitrate and etc.
|
|
OSD location is adjustable
|
|
Privacy Mask
|
4 configurable regions
|
|
Image Orientation
|
Image Flip and Mirror
|
|
Auto Image Control Functions
|
Auto
Exposure Control (AEC); Auto White Blance (AWB);
Auto Gain Control(AGC)
|
|
Controls
|
Saturation,
Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR
|
|
Others
|
Anti
Fogging/Anti Trembling/IR Detection/IRIS/
|
|
Audio Compression
|
G.711A/G.711U/G.726
|
|
Two
Way Audio
|
Support
|
|
Data transmission and storage
|
|
Data storage
|
Video and Image
|
|
Recording
|
Auto
recording and manual recording (motion & sensor alarm recording,
scheduled recording)
|
|
Alarm output
|
FTP,
E-mail
|
|
Network protocols
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、HTTPS、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
|
|
Wireless protocols(-W)
|
-------------------------------------------------
|
|
ONVIF
Protocols
|
PROFILE
S
|
|
Remote View
|
PC
|
IE
6.0 above, Firefox, Google etc.
|
|
Mobile Phone
|
Support
Windows Mobile, Symbian, iOS, Android system
|
|
User Access
|
Maximum
5 users
|
|
General Parameters
|
|
Environmental Casing
|
Aluminum
Alloy Housing, Indoor and Outdoor Applicable
|
|
Installation
|
Ceiling
Mounted & Wall Mounted
|
|
Operating Temperature
|
-10 °C ~ 50 °C
|
|
Operating Humidity
|
0% -85% RH
|
|
Power
|
DC12V ±10%(AC
24±10%)
|
|
POE
|
Support
|
|
Power Consumption
|
<3.5W,
IR ON<9W
|
|

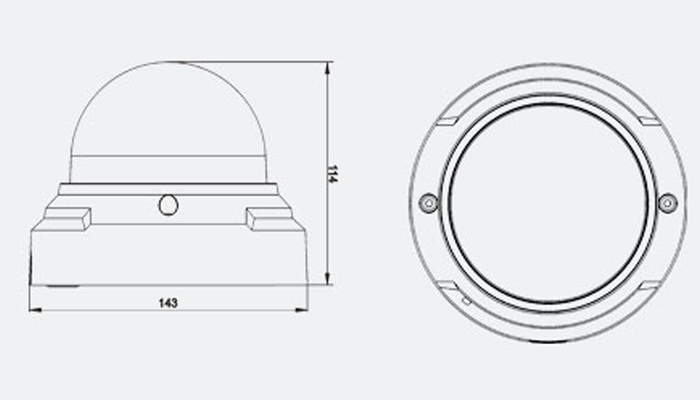

Dimension
|
161mm(Φ)×115mm(H)
|
|
Weight
|
965g
|
|
 |
|
|
|
