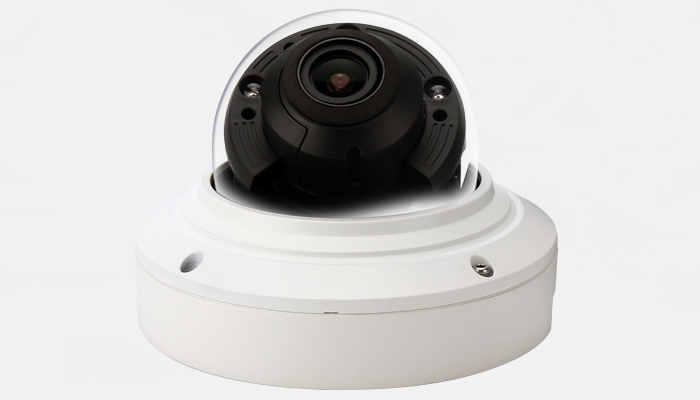

TI-N672MR-85D
25fps&30fps 2MP 3.6-10mmManual 30m IR IK10 IP camera
◎ 1/1.8" SONY EXMOR Progressive Scan CMOS SENSOR
◎ 2.0 Megapixel, 30fps@1920*1080
◎ 3.6-10mm(Manual), 3pcs IR Array LED for 30M, IR ON 0Lux, 120dB TWDR
◎ Support ONVIF Profile S, FTP, RTSP, UPnP etc.
◎ Support Dual-Stream, Mobile Surveillance, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
◎ Support POE, SD card slot(Max. 128G), Audio I/O, Dual Alarm In, Single Alarm Out, RS485, MIC, CVBS, RJ45, DC 12V/AC 24V
◎ Vandal-proof, Weather-proof, IK10 |
|
Hardware
|
|
SOC
|
Hi3516D
|
|
Image Sensor
|
1/1.8" SONY EXMOR Progressive Scan CMOS SENSOR
|
|
Effective Pixels
|
1920(H)×1080(V)
|
|
Interface
|
|
Optical lens
|
Interfaces
|
∮14
|
|
Iris
|
Fixed Iris
|
|
Focal Length
|
3.6-10mm(Manual)
|
|
Audio Talkback
|
1ch MIC external access, 3.5mm AV interface
|
|
Audio Output
|
1ch speaker output, 3.5mm AV interface
|
|
Network Port
|
Lan
|
10/100M BASE-TX, RJ-45 connector
|
|
RS485
|
1*RS485 interface
|
|
Alarm I/O
|
2ch alarm input, 1ch alarm output
|
|
Micro SD
|
Micro SD, Max. 128G
|
|
Audio&Video encoding
|
|
Video Compression
|
H.265/H.264/MJPEG
|
|
H.265 encoding: Main Profile
|
|
H.264 encoding: High Profile/Main Profile/Baseline
|
|
Resolution
|
Main Stream
|
1920*1080/1280*720; 1~30fps(adjustable)
|
|
Sub Stream
|
704*576/640*480/640*352/320*240; 1~30fps(adjustable)
|
|
Video Bitrate
|
30Kbps～16Mbps, Supports CBR/VBR
|
|
OSD Settings
|
Text overlay supported like title, time, date, week, bitrate and etc.
|
|
OSD location is adjustable
|
|
Privacy Mask
|
4 configurable regions
|
|
Image Orientation
|
Image Flip and Mirror
|
|
Auto Image Control Functions
|
Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Gain Control(AGC)
|
|
Image Controls
|
Saturation, Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR
|
|
Others
|
Anti Fogging/Anti Trembling/IR Detection/IRIS/
|
|
Audio Compression
|
G.711A/G.711U/G.726
|
|
Two Way Audio
|
Support
|
|
Data transmission and storage
|
|
Data storage
|
Video and Image
|
|
Recording
|
Auto recording and manual recording (motion & sensor alarm recording, scheduled recording)
|
|
Alarm output
|
FTP, E-mail
|
|
Network protocols
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、HTTPS、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
|
|
Wireless protocols(-W)
|
-------------------------------------------------
|
|
ONVIF Protocols
|
PROFILE S
|
|
Remote View
|
PC
|
IE 6.0 above, Firefox, Google etc.
|
|
Mobile Phone
|
Support Windows Mobile, Symbian, iOS, Android system
|
|
User Access
|
Maximum 5 users
|
|
General Parameters
|
|
Environmental Casing
|
Aluminum Alloy Housing, Indoor and Outdoor Applicable
|
|
Installation
|
Ceiling Mounted & Wall Mounted
|
|
Operating Temperature
|
-10 °C ~ 50 °C
|
|
Operating Humidity
|
0% -85% RH
|
|
Power
|
DC12V ±10%(AC 24±10%)
|
|
POE
|
Support
|
|
Power Consumption
|
<3.5W, IR ON<9W
|
|
Dimension
|
161mm(Φ)×115mm(H)
|
|
Weight
|
965g
|
|
|
|
|
|
