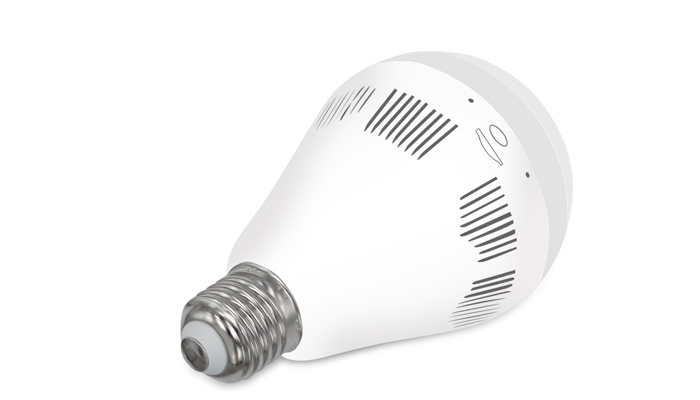

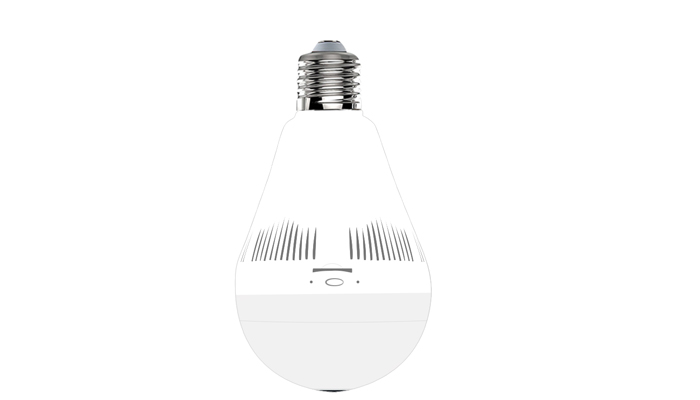

Product model：
|
EC18D-I6
|
|
Technical parameter
|
|
Processor：
|
GM8135+SC1135
|
|
Platform：
|
S.360eye.cc
|
|
Image sensor：
|
1/3 Progressive Scan CMOS
|
|
Built in lens：
|
1.44mm,360 degrees fisheye lens
|
|
View Angle：
|
360 degrees
|
|
Video format：
|
1280*960P(1.3MP)
|
|
Video compression standard：
|
H.264
|
|
Audio compression standard：
|
G.711
|
|
Video frame rate：
|
Maximum 25 frames
|
|
Video playback mode：
|
Mobile client
|
|
Audio input and output：
|
Input： built in microphone; output： built-in speaker
|
|
Night Vision：
|
Ir leds：3pcs ir leds，power consumption 1W； Through the image contrast control switch, IR night vision distance 10 meters； Automatic mode： control lights switch by the image contrast； Manual mode： manually adjust the brightness of the light on the APP
|
|
Illumination：
|
48pcs White LED，power consumption 1W
|
|
Focus Mode：
|
Manual
|
|
Local storage：
|
TF card, maximum support 128G
|
|
Support multiple protocols：
|
TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP
|
|
WiFi protocol：
|
IEEE 802.11b/g/n
|
|
Video control：
|
Support
|
|
Motion detection：
|
Support
|
|
Alarm action：
|
Mobile client push screenshot
|
|
User settings：
|
Max share to 5 users
|
|
System interface：
|
E27（Europe），TF interface
|
|
Supply voltage：
|
AC 100～240V
|
|
Power consumption：
|
<5W
|
|
Working temperature：
|
0℃ -60℃
|
|
Applicaton：
|
Indoor
|
|
Product size:
|
8.0*8.0*14.0cm
|
|
Packing size:
|
13.4*16.8*8.8cm
|
|
Net weight：
|
136g
|
|
Gross weight/pc：
|
419g
|
|
Carton size：
|
68*35*45.3cm（50pcs/Carton）
|
|
Gross weight/carton：
|
22Kg
|
|
Packaging and accessories：
|
1 Color box
|
|
2 Inner support
|
|
3 Instructions
|
