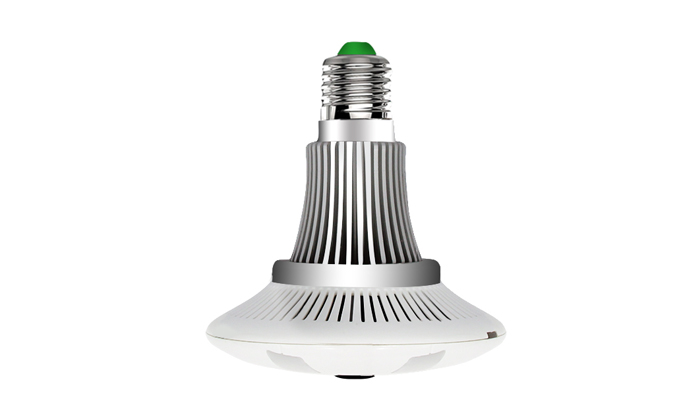

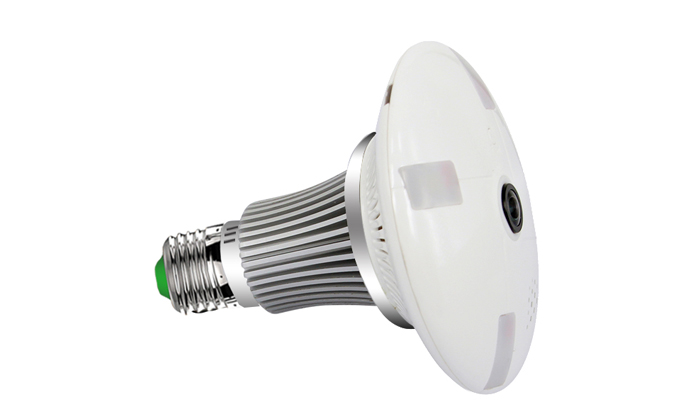

Product model:
|
EC21B-I6
|
|
Technical parameter
|
|
|
Processor:
|
GM8135+SC1135
|
|
Platform:
|
S.360eye.cc
|
|
Image sensor:
|
1/3 Progressive Scan CMOS
|
|
Built in lens:
|
1.44mm,360 degrees fisheye lens
|
|
View Angle:
|
360 degrees
|
|
Video format:
|
1280*960P(1.3MP)
|
|
Video compression standard
|
H.264
|
|
Audio compression standard
|
G.711
|
|
Video frame rate:
|
Maximum 25 frames
|
|
Video playback mode:
|
Mobile client
|
|
Audio input and output:
|
Input: built in microphone; output: built-in speaker
|
|
Night Vision:
|
Automatic mode: control lights switch by the image contrast (IR-CUT automatic switching); Manual mode: manually adjust the brightness of the light on the APP (IR-CUT automatic switching)
|
|
Illumination
|
4pcs White LED，power consumption 1W
|
|
Focus Mode:
|
Manual
|
|
Local storage
|
TF card, maximum support 128G
|
|
Support multiple protocols:
|
TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP
|
|
WiFi protocol:
|
IEEE 802.11b/g/n
|
|
Video control:
|
Support
|
|
Motion detection:
|
Support
|
|
Alarm action:
|
Mobile client push screenshot
|
|
User settings:
|
Max share to 5 users
|
|
System interface:
|
E27（Europe），TF interface
|
|
Supply voltage:
|
AC 100～240V
|
|
Power consumption：
|
<5W
|
|
Working temperature:
|
0℃ -60℃
|
|
Applicaton:
|
Indoor
|
