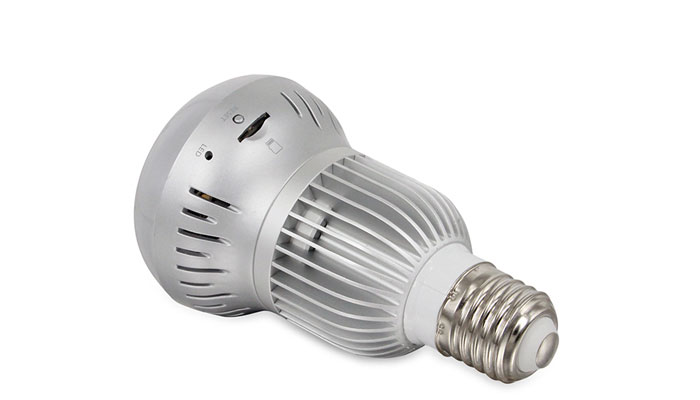

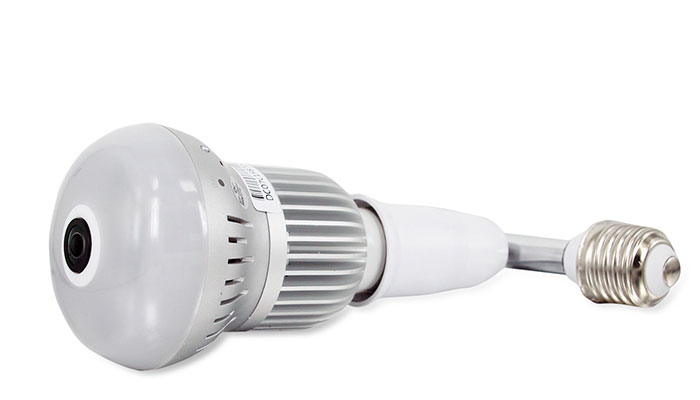

Product model：
|
EC9D-I6
|
|
Technical parameter
|
|
Processor：
|
GM8135+SC1135
|
|
Platform：
|
S.360eye.cc
|
|
Image sensor：
|
1/3 Progressive Scan CMOS
|
|
Built in lens：
|
1.44mm,360 degrees fisheye lens
|
|
View Angle：
|
360 degrees
|
|
Manual video format：
|
MP4(1280*960P,storage in mobile)
|
|
Video compression standard：
|
H.264(Storge in TF card )
|
|
Audio compression standard：
|
G.711(Storge in TF card )
|
|
Video frame rate：
|
Maximum 25 frames
|
|
Video playback mode：
|
Mobile client
|
|
Audio input and output：
|
Input： built in microphone; output： built-in speaker
|
|
Night Vision：
|
Ir leds：3pcs ir leds，power consumption 1W； Through the image contrast control switch, IR night vision distance 10 meters； Automatic mode： control lights switch by the image contrast(IR-CUT automatic switching)； Manual mode： manually adjust the brightness of the light on the APP (IR-CUT automatic switching)
|
|
Illumination：
|
34pcs White LED，power consumption 1W
|
|
Focus Mode：
|
Manual
|
|
Local storage：
|
TF card, maximum support 128G
|
|
Support multiple protocols：
|
TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP
|
|
WiFi protocol：
|
IEEE 802.11b/g/n
|
|
Video control：
|
Support
|
|
Motion detection：
|
Support
|
|
Alarm action：
|
Mobile client push screenshot
|
|
User settings：
|
Max share to 5 users
|
|
System interface：
|
E27（Europe），TF interface
|
|
Supply voltage：
|
AC 100～240V
|
|
Power consumption：
|
<5W
|
|
Working temperature：
|
0℃ -60℃
|
|
Applicaton：
|
Indoor
|
|
Product size:
|
7.0*7.0*12.5cm
|
|
Packing size:
|
14*16.5*7.8cm
|
|
Net weight：
|
162g
|
|
Gross weight/pc：
|
434g
|
|
Carton size：
|
70*35*43.5cm（50pcs/Carton）
|
|
Gross weight/carton：
|
22.7Kg
|
|
Packaging and accessories：
|
1 Color box
|
|
2 Inner support
|
|
3 Instructions
|
