TI-N9616

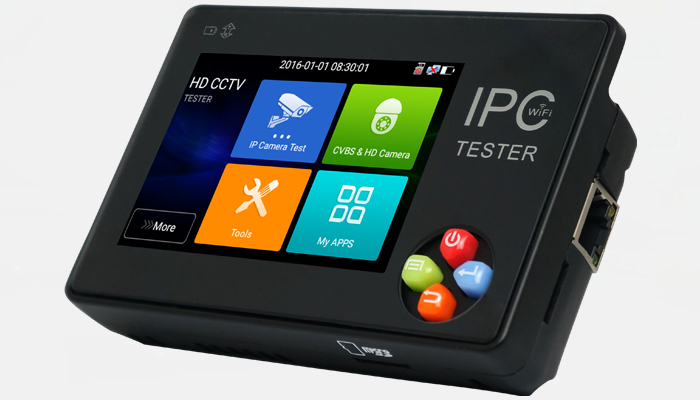

3.5inch Touch screen H.265/H.264 4K IP tester

1.       3.5 inch wide angle touch screen,480*320 resolution

2.       New- H.264 and H .265 ,4K video display via mainstream

3.       New- PPPOE Dial test, can connect internet.to PPPOE dial test

4.       IP & CVBS camera test, PTZ controller

5.       New- Rapid video, just by one key to detect all network cameras and auto display

6.       Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

7.       New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS

8.       New- Screen management, change function’s icons order

9.       New-drop-down menu , IP setting, CVBS,LAN info in any interface

10.     TesterPlayscreen projection: tester, android version mobile phone and PC display at the same time

11.     New- Screen lock, password lock and pattern lock are optional

12.     New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

13.     New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

14.     ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)

15.     Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

16.     New- 4K video files and MKV/MP4 media files play

17.     DC 12V /1A power output

18.     IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

19.     Display its genuine resolution of the IP camera images

20.     PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

21.     PING test ,IP address scan, port flashing etc

22.     Audio in , support record and save the audio, calculators, music players and other application tools

23.     3.7 V /3000mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 8 hours
