TI-HT9686
7inch EX-SDI/SDI/TVI/CVI/AHD/Analog Tester
◆ 7 inch retina touch screen, 1920*1200 resolution
◆ 5MP TVI, 4MP CVI, 4MP AHD and SDI/EX-SDI test
◆ H.265/H.264, 4K video display via mainstream
◆ Dual window test, IP &Analog camera test
◆ Built in WIFI,
create WIFI hotspot
◆ HDMI input & output, 1080p
◆ IP discovery , shortcut
button, drop-down menu
◆ DC12V 2A, DC48V PoE power output
◆ Rapid ONVIF, auto view video, and create testing report
◆ Quick office(excel ,word ,PPT format ) doc.
◆ RJ45 cable TDR test, cable quality test
◆UTP cable tester
◆ TesterPlay, tester, android version mobile
phone and PC display at the same time
|
|
LCD
|

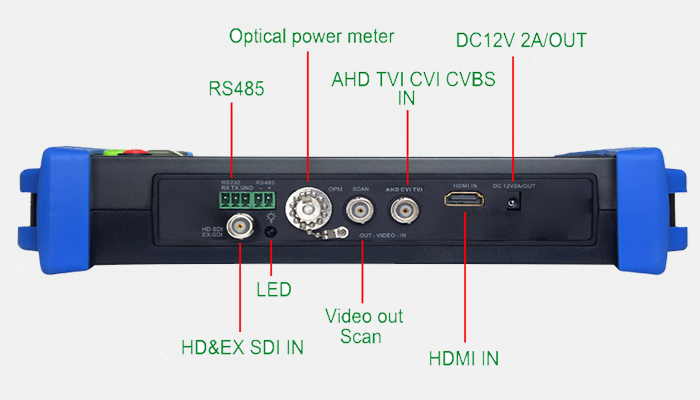

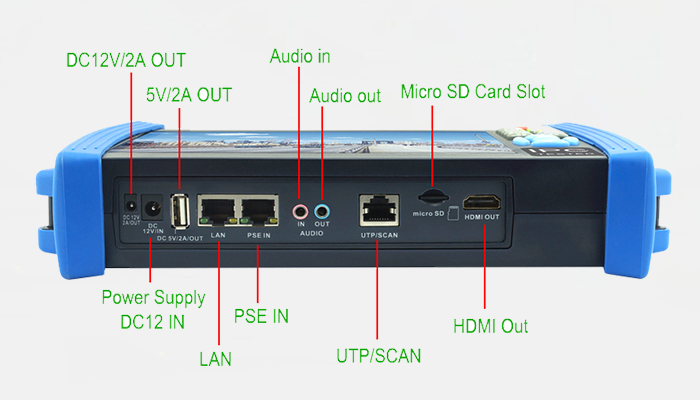

Size& Display resolution
|
New 7 inch touch screen with retina display ,1920*1200 resolution
|
|
Video Mode
|
CVBS
|
1 channel BNC input & 1 channel BNC looped
output, NTSC/PAL (Auto adapt)
|
|
Analog video level meter, peak video
signal level, SYNC signal level, Color bar chroma level measurement
|
|
PTZ control,RS485
control, Baud 600-115200bps, Compatible with more than 30 protocols such as
PELCO-D/P, Samsung, Panasonic, etc
|
|
CVBS loop test
|
the tester send and receive color bar generator signal, check BNC
cable
|
|
IP camera test
|
IPC test /IPC viewer /Rapid Video/RTSP /ONVIF
|
|
Rapid Video
|
can create testing report
|
|
Hik test tool
|
pressing just one key to activate hikvision camera , Image test, can modify the user
name, password and IP parameters
|
|
Dahua test tool
|
Dahua camera test, modify the user name, password and IP
parameters
|
|
IP& CVBS test
|
IP& CVBS test at the same time ,converter
test from analog to digital with dual test window
|
|
Coaxial HD test *
|
5MP TVI camera test,2560x1944P12.5FPS, UTC control/ call OSD menu
|
|
4MP CVI camera test: 2560x1440P
25F/30F,UTC control d call OSD menu
|
|
4MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSD menu
|
|
HD SDI/EX-SDI camera test ,support 1080P
50/60 FPS
|
|
HDMI input
|
1 channel HDMI input,support1080P
|
|
Zoom Image
|
4x zoom, to enlarge image, Screen snapshot, record ,save ,view and
record and play back
|
|
Analog Video out
|
color bar generator
|
Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable
|
|
HDMI output
|
1 channel HDMI output, support 1920*1080P
|
|
|
12V/2A power output
|
Output DC12V/2A power out ,supply temporarily power for the
camera
|
|
Power output
|
PoE power output
|
48V PoE power output, max power 24W
|
|
5V/2A power output
|
USB 5V 2A power output, as a power bank
|
|
Cable test
|
TDR cable test *
|
BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
|
|
Cable tracer
|
search BNC cable, network cable and telephone
cable from the mess cables
|
|
UTP cable test
|
Test UTP cable connection status and display on the screen. Read
the number on the screen
|
|
RJ45 cable TDR test
|
test cable pair status, length, attenuation,
reflectivity, impedance, skew etc
|
|
TesterPlay
|
screen projection: tester, android version
mobile phone and PC display at the same time
|
|
Network test
|
Trace route, Link monitor , DHCP server, port flashing , Ping
test
|
|
Wi-Fi
|
Built in WIFI,speeds150M,display wireless camera image
|
|
Audio test
|
1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone
|
|
Data monitor
|
Captures and analyzes the command data from controlling device，also can send hexadecimal
|
|
PoE test
|
Measurement POE switch or PSE power supply voltage and cable
connection status
|
|
Drop-down menu
|
You can select PoE power switch ,IP setting, WLAN switch , HDMI IN
functions etc in any interface
|
|
External power supply
|
DC 12V 2A
|
|
Battery
|
Built-in 7.4V Lithium polymer battery ,6500mAh
|
|
Rechargeable
|
After charging 7~8 hours, normal working time 16 hours
|
|
Operation setting
|
OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish etc
|
|
Auto off
|
1-30 (mins)
|
|
Working Temperature
|
-10℃---+50℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
231mm x 172mm x 52mm / 1.26Kg
|
|
Below functions are customizable (If add any below function into
tester, you need pay addition cost)
|
|
Digital Multimeter :DC and AC voltage measurement, Resistance measurement,
Continuity test, Diode measurements, Capacitance measurement
|
|
Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical
power testing and Fiber link loss relative measurement
|
|
Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red
laser sources to test multi-mode and single mode fiber’s bending and
breakage, test range 10KM
|
|
TDR cable test: BNC cable, network cable, telephone cable, RVV cable and
elevator cable, cat 5/6 cable’s length and short circuit. measurement range
1.2KM
|
|
Video level
meter :PEAK ,SYNC signal
level, color burst chroma level measurement （free ）
|
|
Cable tracer :search BNC cable, network cable and telephone cable from the
mess cable (free)
|
|
|
|
|
|
