General

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.

TI-ACT9537 CCTV amera tester can work with 720P/960P/1080P Coaxial AHD Camera, TVI camera and CVI Camera, 960H/1000tvl/1200tvl traditional analog Camera

Key feature

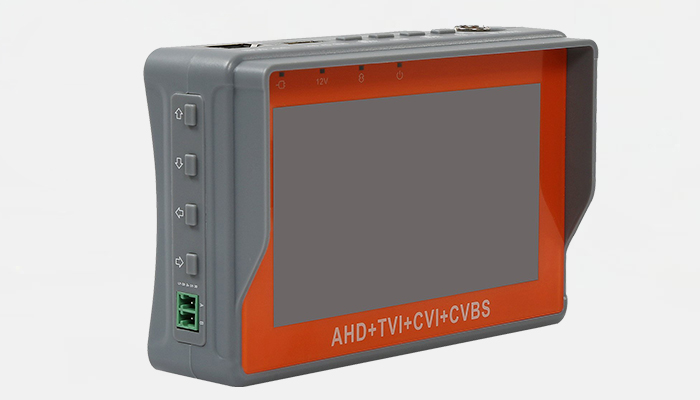

● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color

●  Support PAL/NTSC standard video signal. CVBS testing.

● PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

● Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

● TVI camera test

HD TVI video surveillance testing, support 5MP 25,30fps / 4MP 25,30fps/ 3MP 25,30fps / 720p 25, 30fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image.

● CVI camera test

HD TVI video surveillance testing, support 4MP 12.5fps,20fps/ 3MP 12.5fps, 20fps/ 720p 25, 30fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image.

● AHD camera test

HD video surveillance testing, support  5MP 25,30fps /4MP 25,30fps/3MP 25,30fps /720p 25,30fps/ 1080p 25,30fps. When AHD signal input, the tester will display the AHD camera image.

● LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
