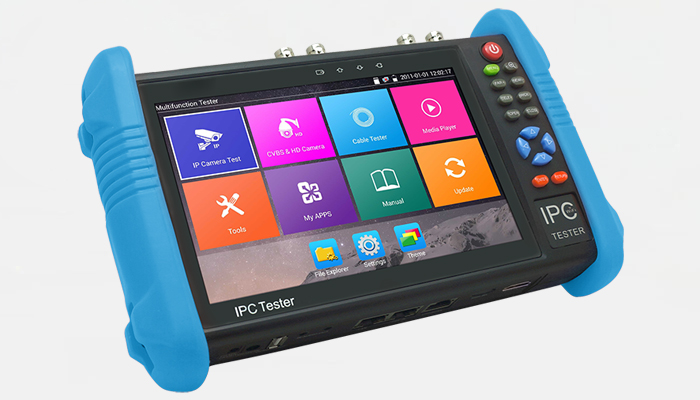

1) 7 inch IPS touch screen cctv tester,1280*800 resolution.

2) H.264 and H .265 ,4K video display via mainstream

3)  8MP TVI test,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4) 5MP AHD test, 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

5) 8MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

6) HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

7)  IP & CVBS camera test, PTZ controller

8) New- Rapid video, just by one key to detect all network cameras and auto display

9) Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

10) New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS

11) New- Screen management, change function’s icons order, create new directory

12) New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

13) Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

14) New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

15) TesterPlay（screen projection）: tester, android version mobile phone and PC display at the same time

16) New- Screen lock, password lock and pattern lock are optional

17) New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

18) HDMI output ,support 1080P

19)New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable

20)New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

21)New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

22) ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

23)Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

24) New- 4K video files and MKV/MP4 media files play

25) PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

26) New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable

27)8GB SD card including

28) IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

29) Display its genuine resolution of the IP camera images

30) Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

31)Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

32)POE voltage measurement, PING test ,IP address scan, port flashing etc

33)Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

34)7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours
