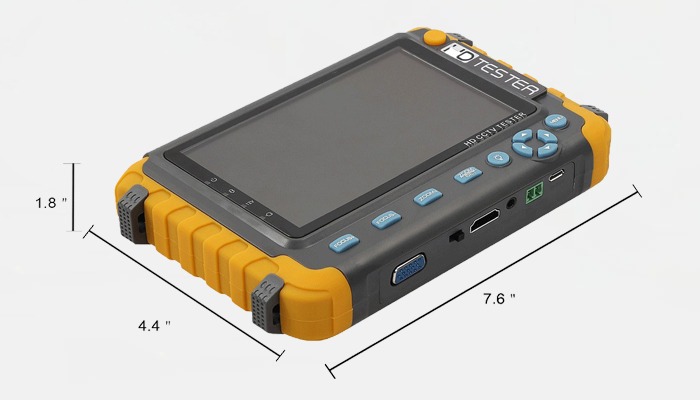

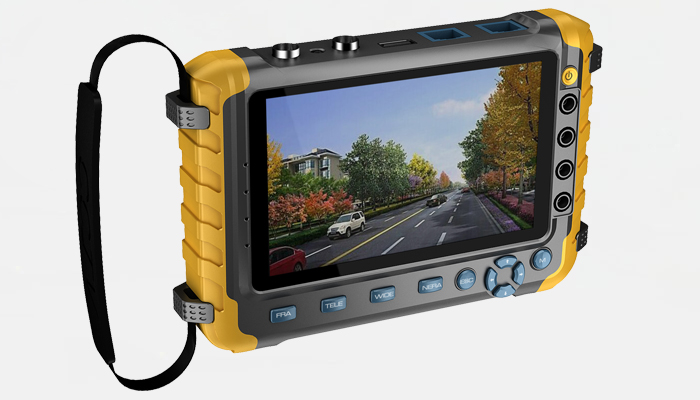

●    Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

●    Support PAL/NTSC standard video signal.

●    PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

●    Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

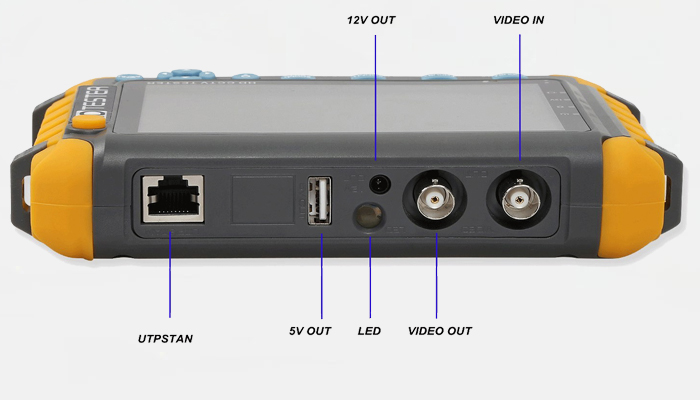

●    DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

●    Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

●    Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

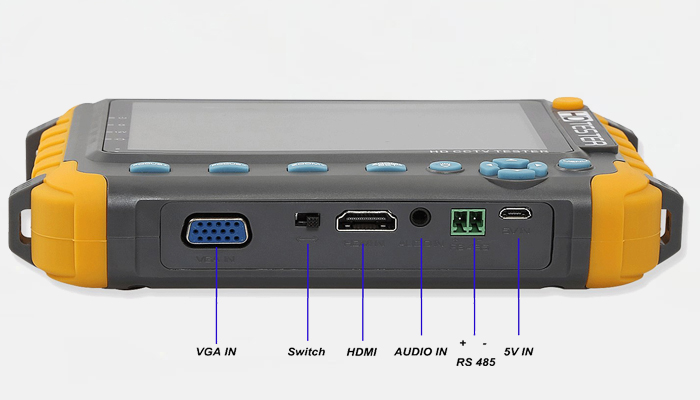

●    VGA/HDMI input

Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.

●    TVI camera test

HD TVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image.

●    CVI camera test

HD CVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image.

●    AHD camera test

HD video surveillance testing, support AHD 2.0 version, 720p 25,30fps/ 1080p 25,30fps. When AHD signal input, the tester will display the AHD camera image.

●    LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
