TI-HT9699
New 8inch Ex-SDI/SDI/AHD/CVI/TVI Analog in 1 tester
● New -8 inch retina touch screen, 2048*1536 resolution
●4 channels Rapid ONVIF, auto view video, and create testing report
●Support Video level meter and Cable tracer test
● UTC control/ call OSD menu
● RJ45 cable TDR test
●H.265/H.264, 4K video display via mainstream
● 8MP TVI, 8MP CVI, 5MP AHD and SDI/EX-SDI test
● DC12V 3A, DC48V PoE power output
● RJ45 cable TDR test, cable quality test

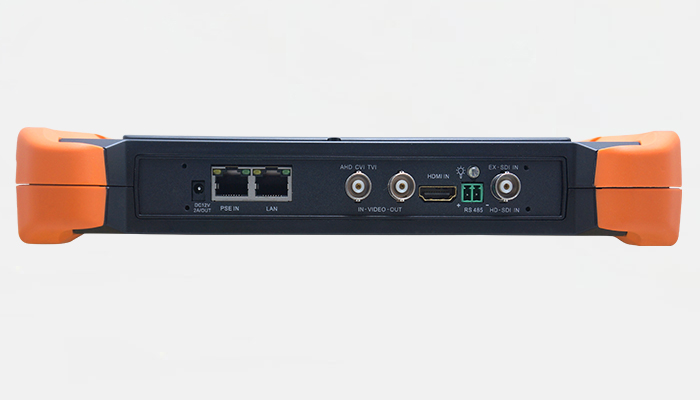

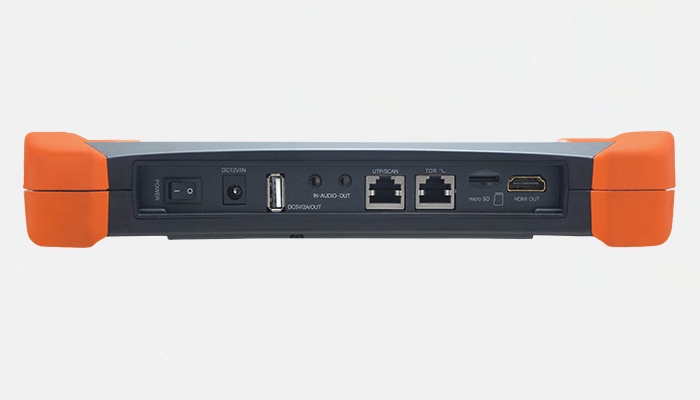

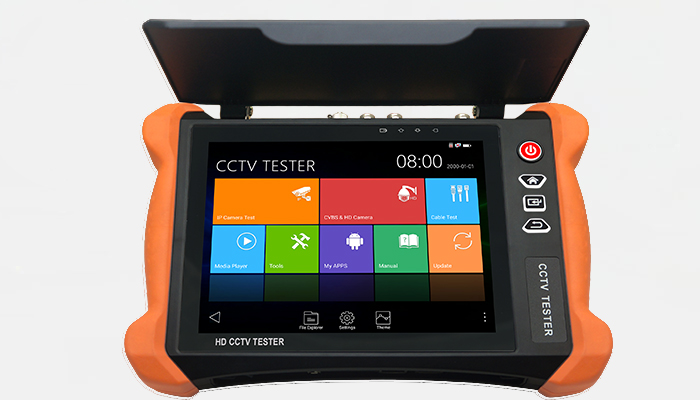

● Anti-sunlight board,help shade the eyes of engineers from the glare ofsunlight.
● HDMI input and 4K output
● HD coaxial video signal quality and level meter test
● TesterPlay, tester, android version mobile phone and PC display at the sametime
● 4.3 inch IPS touch screen,800*480 resolution
● H.265/H.264, 4K video display via mainstream
● Dual window test, IP &Analog camera test
● Built in WIFI, create WIFI hotspot
●Support1080p HDMI input
● IP discovery , shortcut button, drop-down menu
● DC12V 2A, DC48V PoE power output
● Rapid ONVIF, auto view video and create testing report
● Quick office(excel ,word ,PPT format ) doc.
● RJ45 cable TDR test, cable quality test
● UTP cable tester
● TesterPlay: Tester, android version mobile phone, PC display at the sametime
|
|
LCD Size & Display resolution
|
New 8 inch touch screen with retina display, 2048*1536 resolution
|
|
Video Mode
|
CVBS
|
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL
(Auto adapt)
|
|
Analog video level meter, peak video
signal level, SYNC signal level, Color bar chroma level measurement
|
|
PTZ control, RS485
control, Baud 600-115200bps, Compatible with more than 30 protocols such as
PELCO-D/P, Samsung, Panasonic, etc
|
|
CVBS loop test
|
the tester send and receive color bar generator signal, check BNC
cable
|
|
IP camera test
|
IPC test /IPC viewer /Rapid Video/RTSP /ONVIF
|
|
Rapid Video
|
can create testing report
|
|
Hik test tool
|
pressing just one key to activate hikvision camera, Image test, can modify the user
name, password and IP parameters
|
|
Dahua test tool
|
Dahua camera test, modify the user name, password and IP
parameters
|
|
IP& CVBS test
|
IP& CVBS test at the same time, converter
test from analog to digital with dual test window
|
|
Coaxial HD test *
|
8MP TVI camera test:3840 x 2160P 15 FPS, UTC
control/ call OSD menu
|
|
8MP CVI camera test: 3840
x 2160P 12.5/15 FPS,UTC control d call OSD menu
|
|
5MP AHD test: 2592 x
1944P 12.5/20FPS, UTC control d call OSD menu
|
|
HD SDI/EX-SDI camera test: support 1080P
25/30/50/60 FPS
|
|
HDMI input
|
1 channel HDMI input,support1080P
|
|
Zoom Image
|
4x zoom, to enlarge image, Screen snapshot, record ,save ,view and
record and play back
|
|
Analog Video out
|
color bar generator
|
Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable
|
|
HDMI output
|
1 channel HDMI output, support 1920*1080P
|
|
|
12V/3A power output
|
Output DC12V/3A power out ,supply temporarily power for the
camera
|
|
Power output
|
PoE power output
|
48V PoE power output, max power 24W
|
|
5V/2A power output
|
USB 5V 2A power output, as a power bank
|
|
Cable test
|
TDR cable test *
|
BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable’s length and short circuit. measurement range
1.2KM(Built-in cable TDR test port, only for network cable )
|
|
Cable tracer
|
search BNC cable, network cable and telephone cable from the mess
cables
|
|
UTP cable test
|
Test UTP cable connection status and display on the screen. Read
the number on the screen
|
|
RJ45 cable TDR test
|
test cable pair status, length, attenuation,
reflectivity, impedance, skew etc
|
|
TesterPlay
|
screen projection: tester, android version mobile phone and PC
display at the same time
|
|
Network test
|
Trace route, Link monitor, DHCP server, port flashing , Ping
test
|
|
Wi-Fi
|
Built in WIFI,speeds150M,display wireless camera image
|
|
Audio test
|
1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone
|
|
Data monitor
|
Captures and analyzes the command data from controlling device，also can send hexadecimal
|
|
PoE test
|
Measurement POE switch or PSE power supply voltage and cable
connection status
|
|
Drop-down menu
|
You can select PoE power switch, IP setting, WLAN switch, HDMI IN
functions etc in any interface
|
|
External power supply
|
DC 12V 2A
|
|
Battery
|
Built-in 7.4V Lithium polymer battery, 7000mAh
|
|
Rechargeable
|
After charging 6-7 hours, normal working time 16 hours
|
|
Operation setting
|
OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish etc
|
|
Auto off
|
1-30 (mins)
|
|
Working Temperature
|
-10℃---+50℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
264mm x 182mm x 43mm / 1Kg
|
|
Below functions are customizable，MOQ is 50pcs (If add any below function into tester, you need
pay addition cost)
|
|
M*
|
Digital Multimeter :DC and AC voltage
measurement, Resistance measurement, Continuity test, Diode measurements,
Capacitance measurement
|
|
O*
|
Optical power meter, Wavelength：1625nm,1550nm,1490nm,1310nm,1300nm,850nm,
measurement range, -70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement
|
|
V*
|
Visual fault locator:10mW visual fault locator
with 650nm wavelength can emit red laser sources to test multi-mode and
single mode fiber’s bending and breakage, test range 10KM
|
|
T*
|
TDR cable test: BNC cable, network cable,
telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and
short circuit. measurement range 1.2KM
|
|
|
|
|
|
