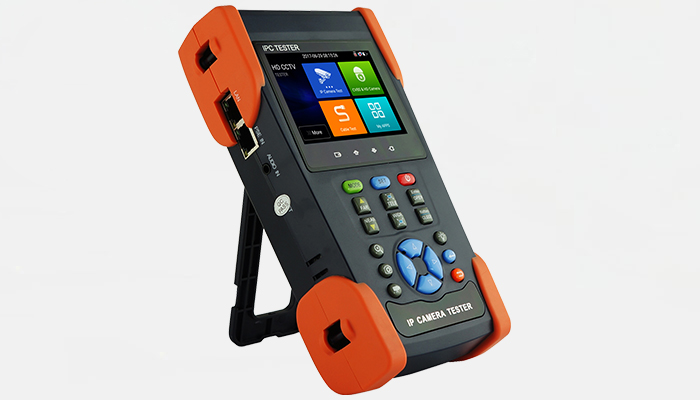

TI-HT9635
3.5inch H.265 4K Economic IP AHD/CVI/TVI/EX-SDI Tester
◆ 3.5 inch IPS touch screen, 480*320 resolution
◆ 8MP TVI, 8MP CVIT,5MP AHD
◆ H.265/H.264, 4K video display via
mainstream
◆ UTP cable tester
◆ Built in WIFI, create WIFI hotspot
◆Dual window
test, IP &Analog camera test
◆ IP discovery , shortcut button, drop-down
menu
◆ DC12V 2A, DC48V PoE power output
◆ Rapid ONVIF, auto view video and create
testing report
◆ RJ45 cable
TDR test, cable quality test
◆ TesterPlay: Tester, android
version mobile phone, PC display at the same time
|
|
LCD
|
Item series
|
TI-HT9635 series
|
|
Display
|
New 3.5 inch IPS touch screen ,480*320 resolution
|
|
Video Mode
|
CVBS
|

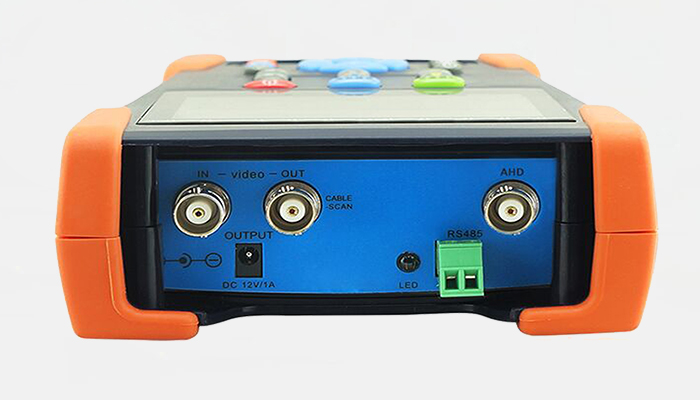

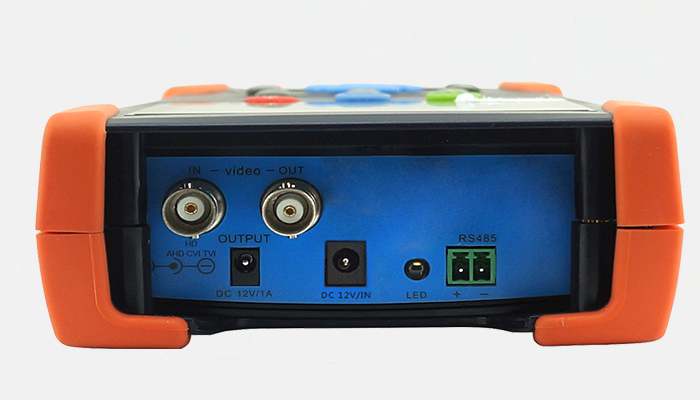

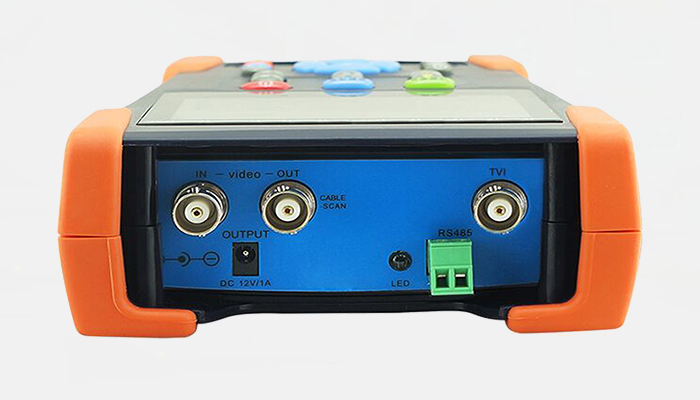

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL
(Auto adapt)
|
|
Analog video level meter, peak video
signal level, SYNC signal level, Color bar chroma level measurement*
|
|
PTZ control,RS485 control, Baud
600-115200bps,compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic etc
|
|
CVBS loop test
|
the tester send and receive color bar generator signal , check BNC
cable
|
|
IP camera test
|
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
|
|
4k/H.265/H.264
|
Rapid Video
|
Auto view the video, create testing report
|
|
Hik test tool
|
pressing just one key to activate hikvision camera , Image test, can modify the user
name, password and IP parameters
|
|
Dahua test tool
|
Dahua camera test, modify the user name, password and IP
parameters
|
|
IP& CVBS test
|
IP& CVBS test at the same time ,converter test from analog to
digital with dual test window
|
|
Coaxial HD test *
|
5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu *
|
|
4MP CVI camera test,2560x1440P 25F/30F,UTC
control d call OSD menu *
|
|
4MP AHD test, 2560x1440P 15F/25F/30F, UTC
control d call OSD menu *
|
|
Zoom Image
|
4x
zoom, to enlarge image, Screen snapshot, record ,save ,view and record and
play back
|
|
Analog Video out
|
color bar generator
|
Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable
|
|
HDMI output
|
1 channel HDMI output, support 1920*1080P
|
|
|
12V/2A power
|
Output DC12V/2A power out ,supply temporarily power for the
camera
|
|
|
PoE power output
|
48V PoE power output, max power 24W
|
|
Power output
|
5V/2A power output
|
USB 5V 2A power output, as a power bank
|
|
Cable test
|
TDR cable test *
|
BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
*
|
|
Cable tracer *
|
search BNC cable, network cable and telephone cable from the mess
cables *
|
|
UTP cable test
|
Test UTP cable connection status and display on the screen. Read
the number on the screen
|
|
RJ45 cable TDR test
|
test cable pair status, length, attenuation, reflectivity,
impedance, skew etc. measurement range 180M.
|
|
TesterPlay
|
screen projection：tester,
mobile phone and PC display at the same time (For android version mobile
phone)
|
|
Network test
|
Trace route, Link monitor , DHCP server, port flashing , Ping
test
|
|
Wi-Fi
|
Built in WIFI,speeds150M,display wireless camera image
|
|
Audio test
|
1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone
|
|
Data monitor
|
Captures and analyzes the command data from controlling device，also can send hexadecimal
|
|
PoE test
|
Measurement POE switch or PSE power supply voltage and cable
connection status
|
|
Drop-down menu
|
You can select PoE power switch ,IP setting, WLAN switch etc in
any interface
|
|
External power supply
|
DC 12V 2A
|
|
Battery
|
Built-in 7.4V Lithium polymer battery ,2800mAh
|
|
Rechargeable
|
After charging 3-4 hours, normal working time 8 hours
|
|
Operation setting
|
OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese
etc
|
|
Auto off
|
1-30 (mins)
|
|
Working Temperature
|
-10℃---+50℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
194mm x 112mm x 48mm / 540g
|
|
Below are optional functions (If add any functions into tester,
you need pay addition cost)
|
|
M*
|
Digital Multimeter :DC and AC voltage
measurement, Resistance measurement, Continuity test, Diode measurements,
Capacitance measurement
|
|
O*
|
Optical power meter, Wavelength：1625,1550nm,1490nm,1310nm,1300nm,850nm,
measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement
|
|
V*
|
Visual fault locator :10mW visual fault
locator with 650nm wavelength can emit red laser sources to test multi-mode
and single mode fiber’s bending and breakage, test range 10KM
|
|
T*
|
TDR cable test: BNC cable, network cable,
telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and
short circuit. measurement range 1.2KM
|
|
L*
|
Video level meter :PEAK ,SYNC signal level,
color burst chroma level measurement
|
|
C*
|
Cable tracer :search BNC cable, network cable
and telephone cable from the mess cable
|
|
|
|
|
|
