TI-HT9618

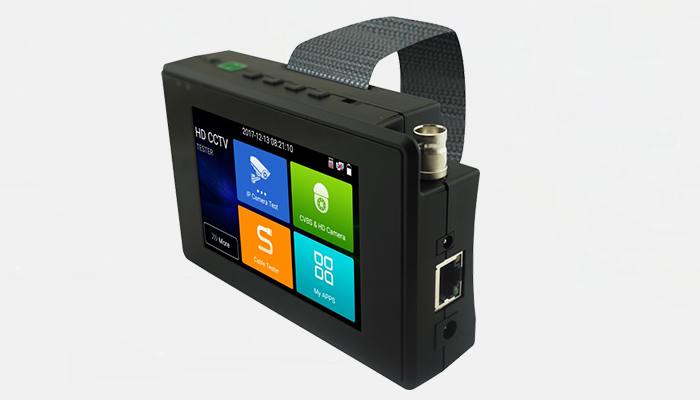

4inch Wrist IP/AHD/CVI/TVI/Analog In 1 Tester
◆ 4 inch IPS touch screen, 800*480 resolution
◆ 8MP TVI, 4MP CVI, 5MP
AHD camera test
◆ H.265/H.264, 4K video display via
mainstream
◆ Dual window test, IP &Analog camera test
◆ CVBS and PTZ control
◆ DC12V 3A, DC48V PoE power output
◆ HD coaxial video signal quality
◆ PPPOE dial test
◆ Rapid ONVIF, auto view video and create
testing report
Overview
The 4 inch IPS touch screen IP camera tester is
designed for maintenance and installation of IP analog, HD coaxial cameras as
well as other security equipment. The 800*480 resolution enables it to display network HD cameras and
analog cameras in high resolution. The unit supports many ONVIF PTZ and analog
PTZ control. CCTV installers often need to carry a variety of testing tools to
complete their work. If take the all in one camera tester, making working
conditions safer and increasing productivity.
|
|
LCD
|
Item No.
|
TI-9618
|
|

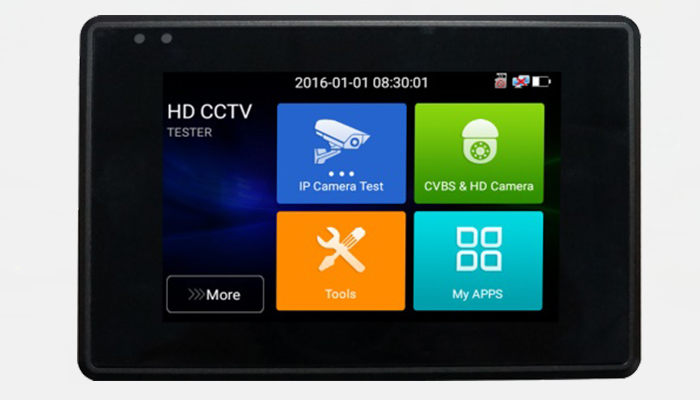

Display
|
New 4 inch IPS touch screen , 800*480 resolution
|
|
Video Mode
|
CVBS
|
1 channel BNC input & 1 channel BNC looped
output, NTSC/PAL (Auto adapt)
|
|
PTZ control, RS485 control,
Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic etc
|
|
IP camera test 4K/H.265/H.264
|
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
|
|
Rapid Video
|
|
Hik test tool
|
|
Dahua test tool
|
|
IP& CVBS test
|
IP& CVBS test at the same time , converter test from analog to
digital with dual test window
|
|
Coaxial HD test
|
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC
control/ call OSD menu
|
|
4MP CVI
camera test, 2560 x 1440P 25/30 FPS, UTC control d call OSD menu
|
|
5MP AHD
test, 2560x1944P 12.5F/20F, UTC control d call OSD
menu
|
|
Zoom Image
|
4x zoom, to enlarge image, Screen snapshot, record, save, view and
record and play back
|
|
Power output
|
12V/3A power
|
Output DC12V/3A power out, supply temporarily power for the
camera
|
|
PoE power output
|
48V PoE power output, max power 24W
|
|
Network test
|
Trace route, Link monitor, DHCP server, port flashing, Ping
test
|
|
Audio test
|
1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone
|
|
Data monitor
|
Captures and analyzes the command data from controlling device,
also can send hexadecimal
|
|
Drop-down menu
|
You can select PoE power switch, IP setting, CVBS,
LAN info, etc in any interface
|
|
External power supply
|
DC 12V2A
|
|
Battery
|
Built-in 7.4V Lithium polymer battery , 2400mAh
|
|
Rechargeable
|
After charging 4~5 hours, normal working time 7 hours
|
|
Operation setting
|
OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese
etc
|
|
Auto off
|
1-30 (mins)
|
|
Working Temperature
|
-10℃---+50℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
126mm x 83mm x 33mm / 0.32kg
|
|
|
|
|
|
