TI-AKB1781D
TI-AKB1781D 8inch Screen PTZ controller
●RS485 Bus Line, and a keyboard can connect 31 domes at most in the direct control mode
●Can be compatible with all kinds of protocols
●Can control the Iris, Focus and Zoom
●Can set and call the preset , run the scanning the pattern and the tour
●Can control the matrix and through which can control the dome indirectly
●Equipped with the 3D Joystick and a LCD screen
●Video input、VGA input and display
●USB Communication function
|
|
Model
|
TI-AKB1781D
|
|
Screen
|
8" Digital Monitor
|
|
Pixel
|
support800*600 1024*768
|
|
Communication
Interface
|
RS485×1、USB×1
|
|
Communication
Frequence
|
2400、4800、9600、19200bps
|
|
Communication Mode
|
RS485、USB
|
|
Protocol
|
Pelco-P/Pelco-D/HCDVR/DH
|
|
Operation Temperature
|
-10℃~+50℃
|
|
Humidities
|
<90%
|
|
Operation Voltage
|
DC 12V ±10%
|
|
Operation Consumption
|
150mA
|
|

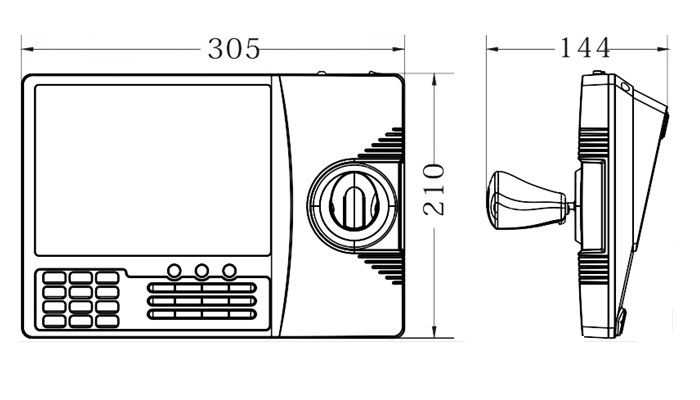

Measure
|
L305*W210*H144(mm)
|
|
Weight
|
2129g
|
|
Material
|
ABS Plastic Cover
|
|
|
|
|
|
