TI-AKB1782
TI-AKB1781D Security System Controller
●Rs485 Bus Line, and a keyboard can connect 31 domes at most in the,direct control mode
●Can be compatible with all kinds of protocols
●Can control the Iris, Focus, Zoom, water Wiper, auxiliary light
●Can set and call the preset , scanning , pattern and tour
●Can control the DVR, matrix and quad processor through which can control the PTZ indirectly
●Equipped with the joystick, shuttle and the larger LCD screen
●CVBS Input,VGA input and display
●Support 4CH VGA Switching operation
|
|
Model
|
TI-AKB1782
|
|
Screen
|
8" Digital Monitor
|
|
Pixel
|
support800*600 1024*768
|
|
Communication Mode
|

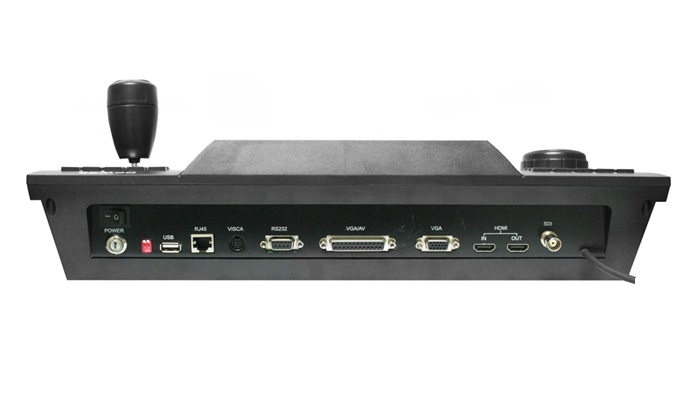

RS485×1、USB×1、VGA×1
|
|
Communication
Frequence
|
2400、4800、9600、19200bps
|
|
Communication
Interface
|
RS485、USB、VGA
|
|
Protocol
|
Pelco-P/Pelco-D/HCDVR/DH
|
|
Operation Temperature
|
-10℃~+50℃
|
|
Humidities
|
<90%
|
|
Operation Voltage
|
DC 12V ~18V
|
|
Operation Consumption
|
500mA
|
|
Measure
|

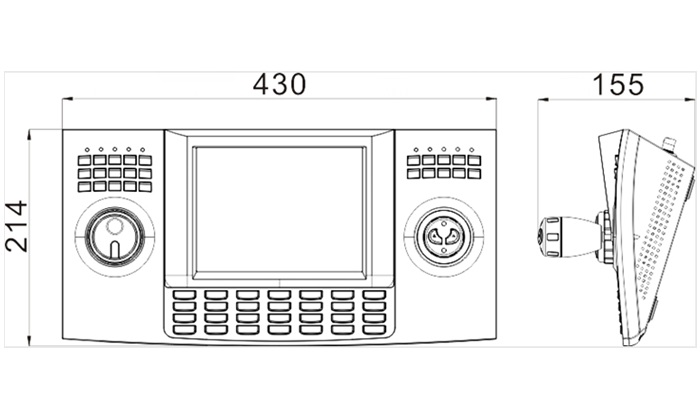

L430*W214*H155(mm)
|
|
Weight
|
1.75Kg
|
|
Material
|
ABS Plastic Cover
|
|
|
|
|
|
