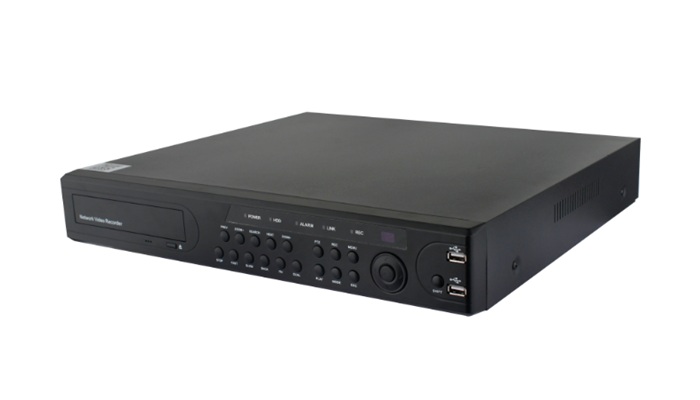

TI-N9200 Series NVR
9/16/32CH 4 SATA NVR
Main Feature:
●Up to 9channel with 1080P realtime live view
●H.264/MJPEG dual codec decoding
●HDMI/VGA simultaneous video output
●Max suport 4ch 960P or 2ch 1080P synchronously playback
●Support Multi-brand network cameras: Dahua, Hikvision, TVT,Sunnell,Vivotek and etc.
●ONVIF Version 2.32conformance
●Support 4 SATA HDD up to 12TB, 2 USB2.0
●Support P2P, QR code
●Multiple network monitoring: Web viewer, CMS
|
|
Item No.
|
TI-N9209
|
TI-N9216
|
TI-N9232
|
|
System
|
|
Main Processor
|
High performance embedded microprocessor-20A
|
|
Operating System
|
Embedded LINUX OS
|
|
Video
|
|
|
IP Camera Input
|
9channel
|
16channel
|
32ch
|
|
Two-way Talk
|
1channel
Input, 1channel Output, RCA
|
|
|
Display
|
|
Interface
|
1 HDMI,1 VGA
|
|
Resolution
|
D1(30fps);720P(30fps);960P(30fps);1080P(30fps)
|
|
Recording
|
|
Compression
|
H.264
|
|
Record Mode
|
Manual Recording, Motion Detection Recording,
Time Recording, Alarm Recording
|
|
Recording Frame rate
|
30 fps NTSC; 25fps PAL
|
|
Video Detection & Alarm
|
|
Trigger Events
|
Recording, PTZ, Tour, Alarm, Video Push, Email,
FTP, Buzzer
|
|
Motion Detection
|
can setup 192(16×12)pcs motion detection area
each channeland multi-level sensitivity (1-6 levels adjustable)
|
|
Alarm Input
|
9ch
|
16
|
32
|
|
Relay Output
|
4ch
|
4
|
4
|
|
Playback & Backup
|
|
Sync Playback
|
Max support 9ch 960P or 4ch 1080P synchronously
playback
|
|
Search Mode
|
Time/Date, Alarm, MD, Smart search
|
|
Playback Function
|
Play, Pause, Stop, Rewind, Fast play, Slow
play, Next file, Previous file, Next camera, Previous camera, Full screen,
Repeat, Shuffle, Backup selection
|
|
Backup Mode
|
Support HDD,USB Flash Disk store&backup
|
|
Network
|
|
Ethernet
|
1 RJ-45 port (10/100Mbps)
|
|
Network Function
|
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search
|
|
Max. User Access
|
15users
|
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone
|
|
Storage
|
|
Internal HDD
|
4 SATA ports, up to 12TB
|
|

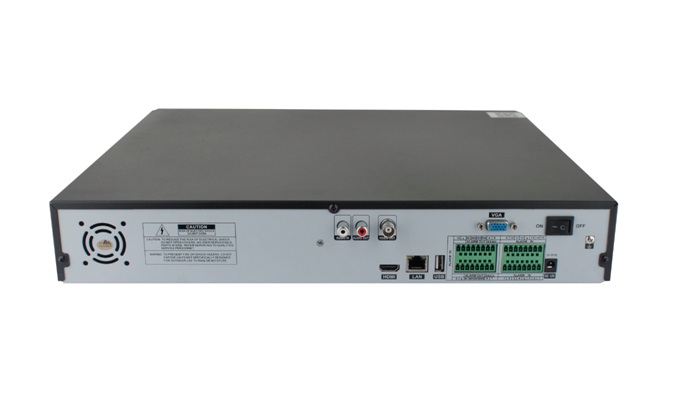

Interface
|
|
USB
|
2 ports, USB2.0
|
|
RS485
|
1 port, For PTZ control
|
|
RS232
|
1 port, For PC communication & Keyboard
|
|
Video output
|
1ch VGA and 1ch HDMI
|
|
General
|
|
Power Supply
|
DC12V/3A
|
|
Power Consumption
|
20~25W(without HDD)
|
|
Working Environment
|
-10°C~+55°C / 10%~90%RH / 86~106kpa
|
|
Dimension
|
1.5U, 385mm * 426mm * 65 mm
|
|
Weight
|
3.5-4.35KG(not include HDD)
|
|
|
|
|
|
