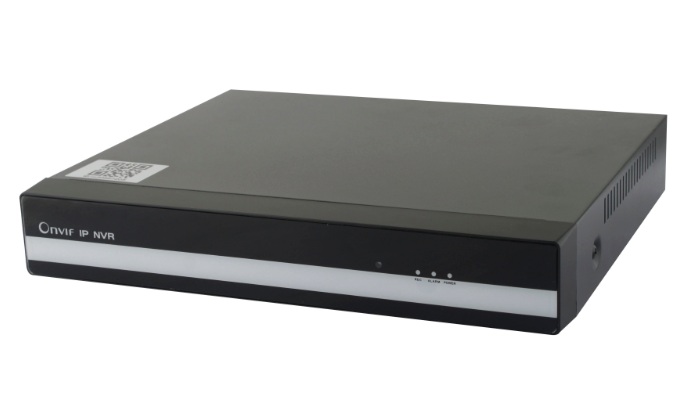

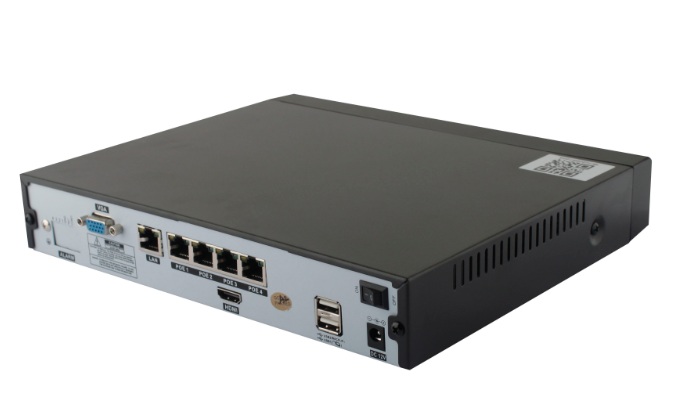

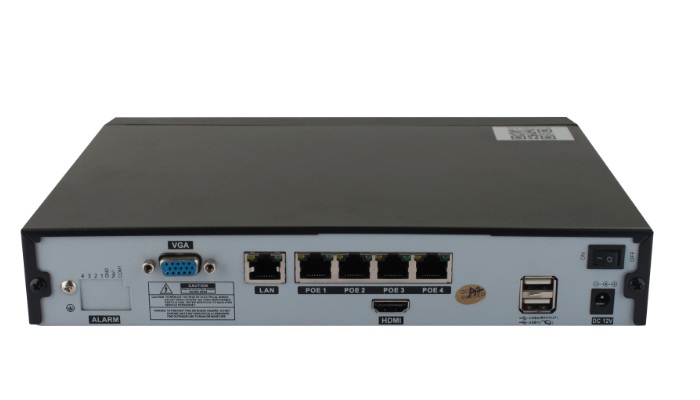

TI-N9100 Series NVR
4CH 1080P Network Video Recorder
● H.264/MJPEG dual codec decoding
● P2P function, a key to the Internet
● 4CH 960P real-time input, Max support 4ch 1080P synchronously playback
● Support 4 SATA HDD up to 12TB, 2 USB2.0
● Support ONVIF, compatible with many well-known manufacturers of network cameras, speed dome and NVS
|
|
Item No.
|
TI-N9100
|
TI-N9109
|
|
System
|
|
Main Processor
|
High
performance embedded microprocessor
|
|
Operating System
|
Embedded
LINUX OS
|
|
Video
|
|
IP Camera Input
|
4channel
|
9channel
|
|
Two-way Talk
|
1channel
Input, 1channel Output, RCA
|
|
Display
|
|
Interface
|
1
HDMI,1 VGA
|
|
Resolution
|
D1(30fps);720P(30fps);960P(30fps);1080P(30fps)
|
|
Recording
|
|
Compression
|
H.264
|
|
Record Mode
|
Manual
Recording, Motion Detection Recording, Time Recording, Alarm Recording
|
|
Recording Frame rate
|
30
fps NTSC; 25fps PAL
|
|
Video
Detection & Alarm & Audio
|
|
Trigger Events
|
Recording,
PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer
|
|
Motion Detection
|
can
setup 192(16×12)pcs motion detection area each channeland multi-level
sensitivity (1-6 levels adjustable)
|
|
Alarm Input
|
/
|
/
|
|
Alarm Output
|
/
|
/
|
|
Audio Input
|
/
|
4ch
|
|
Playback
& Backup
|
|
Sync Playback
|
Max
support 9ch 960P or 4ch 1080P synchronously playback
|
|
Search Mode
|
Time/Date,
Alarm, MD, Smart search
|
|
Playback Function
|
Play,
Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next
camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection
|
|
Backup Mode
|
Support
HDD,USB Flash Disk store&backup
|
|
Network
|
|
Ethernet
|
1
RJ-45 port (10/100Mbps)
|
|
Network Function
|
HTTP,
TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE,
DDNS, FTP, Alarm Server, IP Search
|
|
Max. User Access
|
15users
|
|
Smart Phone
|
iPhone,
iPad, Android, Windows Phone
|
|
Storage
|
|
Internal HDD
|
4
SATA ports, up to 12TB
|
|
Interface
|
|
USB
|
2
ports, USB2.0
|
|
RS485
|
1
port, For PTZ control
|
|
RS232
|
1
port, For PC communication & Keyboard
|
|
Video output
|
1ch
VGA and 1ch HDMI
|
|
General
|
|
Power Supply
|
DC12V/3A
|
|
Power Consumption
|
20W(without
HDD)
|
|
Working Environment
|
-10°C~+55°C
/ 10%~90%RH / 86~106kpa
|
|
Dimension
|
0.8U,252*213*42mm
|
|
Weight
|
1.5--1.8KG(not
include HDD)
|
|
|
|
|
|
