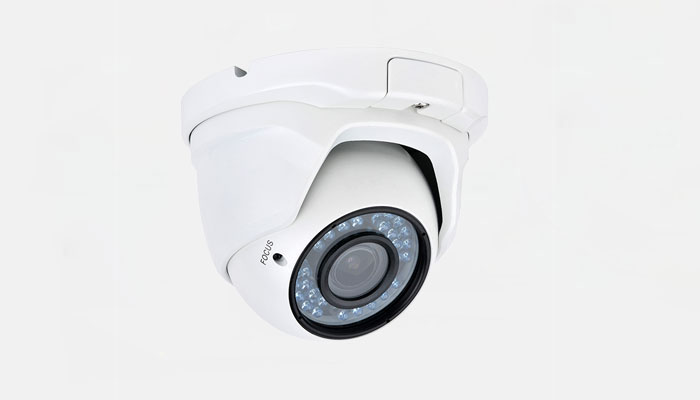

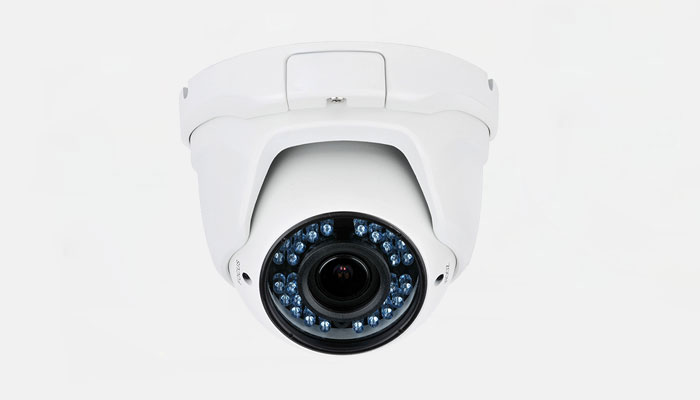

TI-HA6232H
1080P 30M IR Varifocal Dome Camera
● 1/3" 2.1 Mega-pixel Sony Progressive Scan CMOS Sensor
● 2.8-12mm Varifocal IR Lens
● Resolution up to 1080p@30fps
● FHD-over-Coax Transmission Technology
● Video Transmission 500meters
● 36pcs Leds IR up to 30m
● 2/3D Noise Reduction,DWDR,Defog,Low-shutter
● Support AHD/TVI/CVI/ Analog Signal input
● IP66
|
|
Model No.
|
TI-HA6232H
|
|
IP Rating
|
IP66
|
|
Image Sensor
|
1/3”Sony 2.1Mega-pixel DIS IMX323
|
|
ISP
|
NVP2441
|
|
Pixels
|
1920(H)*1080(V)
|
|
Horizontal Resolution
|
1080P
|
|
Viewing Angle
|
101° ~ 30.4°
|
|
Minimum Lux
|
0Lux(36Pieces Array
IR LED ON)
|
|
Vertical Frequency
|
NTSC:60Hz PAL:50Hz
|
|
Scanning System
|
Progressive
|
|
S/N Ratio
|
≥52dB
|
|
Electronic Shutter
|
NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
|
|
Lens
|
2.8~12MM IR Lens
|
|
White Balance
|
ATW
|
|
OSD
|
YES
|
|
IR-CUT
|
Support
|
|
BLC
|
AUTO
|
|
AUTO Gain Control
|
ON
|
|
Defog
|
OFF/ON
|
|
DNR
|
OFF/ON
|
|
DWDR
|
OFF/ON
|
|
Day&Night
|
AUTO/Color/BW
|
|
Available IR Distance
|
30m
|
|
Gamma
|
0.45
|
|
Video Output
|
HD-AHD/CVI/TVI (1080P)/ CVBS
|
|
Power Supply
|
DC12V±10%
|
|
Current consumption
|
700mA (MAX)
|
|
Storage Temperature
|
-30～+60℃
|
|
Operating Temperature
|
-10～+50℃
|
|
Dimension
|
Φ133×144mm
|
|
Weight
|
560g
|
|
|
|
|
|
