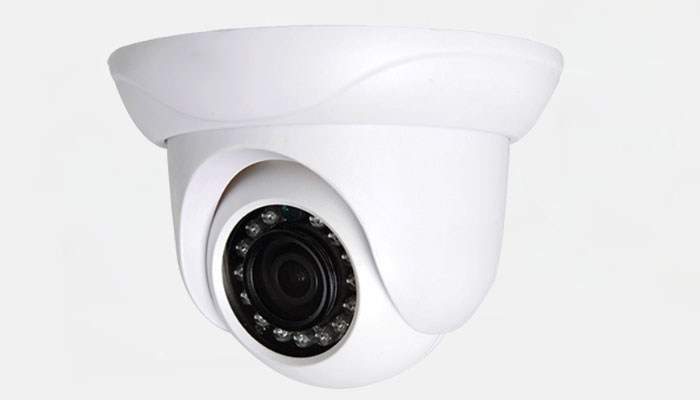

TI-TVI2324
3.0MP 20M IR Dome Camera
• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• 3.6mm lens
• Support ICR switch, true day / light
• Noise reduction function
• IR up to 20m Idistance
• HD TVI lossless video output
• High speed, long distance, real time transmission
• IP66 ingress protection
• Inside Metal Dome
|
|
Camera
|
|
Image Sensor:
|
3MP CMOS Image Sensor
|
|
Signal System:
|
PAL/NTSC
|
|
Effective Pixels:
|
2052(H)*1536(V)
|
|
Min. Illumination:
|
0.01Lux
@(F1.2,AGC ON),0Lux with IR
|
|
Shutter Time:
|
1/25(1/30) s to 1/50,000 s
|
|
Lens:
|
3.6 mm
|
|
Lens Mount:
|
M12
|
|
Adjustment Range:
|
Pan:0-355°,Tilt:0-75°,Rotation:0-355°
|
|
Day& Night:
|
IR cut filter with auto switch
|
|
Video Frame Rate:
|
1920 ×1536
|
|
HD Video Output:
|
1ch HDTVI
output
|
|
Synchronization:
|
Internal Synchronization
|
|
S/N Ratio:
|
More
than 62 dB
|
|
Up the Coax:
|
Support
|
|
Menu
|
|
Auto White Balance:
|
Auto/MWB
|
|
BLC:
|
Support
|
|
AGC:
|
Support
|
|
Language:
|
English/Chinese
|
|
Function:
|
Digital
Noise reduction;Mirror;
|
|
General
|
|
Operating Conditions:
|
-40 °C - 60 °C (-40 °F - 140 °F)
|
|
Humidity 90% or less (non-condensing)
|
|
Power Supply:
|
12 VDC±15%
|
|
-A: 12 VDC±15%, 24 VAC±15%
|
|
Power Consumption:
|
Max. 4.5W
|
|
-A: Max. 6.5W
|
|
IR Range:
|
Up to 20m
|
|
Dimension:
|
Φ119mm×119mm×85mm
|
|
Weight:
|
350 g
|
|
 |
|
|
|
