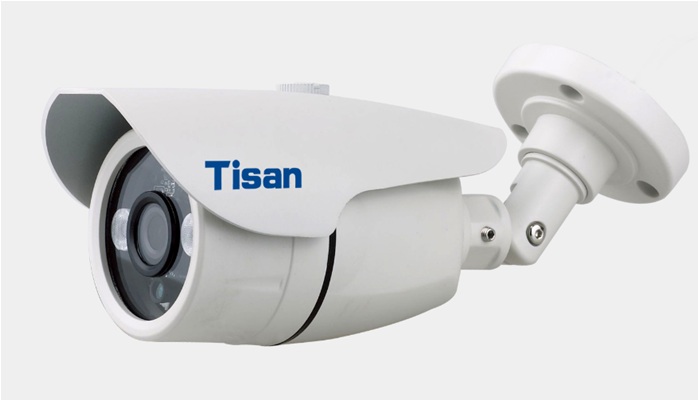

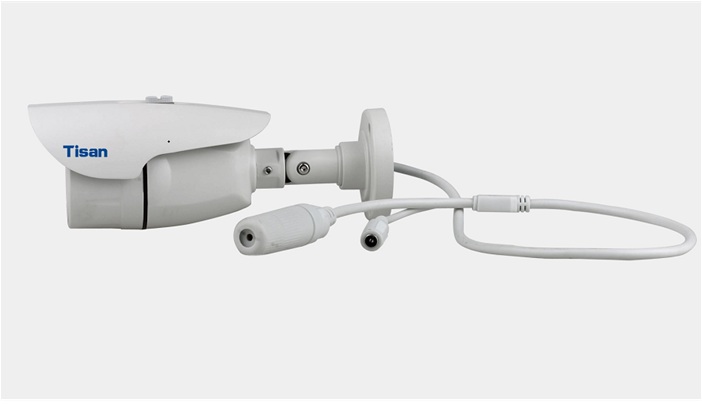

TI-AHD8123,720p AHD CAMERA

Product Category

720P AHD MINI 15M IR fixed Lens CAMERA

Features

Parameters

Structure

Download

• 1/3” Sony 1.3Mega-pixel DIS

• 2PCs Array IR LEDs,IR Range: 15M

• 3.6mm IR Lens,Viewing angle: Diagonal:91°/Horizontal:71°/Vertical:54°

• Feature: Defog, WDR, 3DNR, DSS

Item	TI-AHD8123
IP Rating	IP66
Filter	Removable IR Cut Filter
Image Sensor	1/3” Sony 1.3Mega-pixel DIS
Pixels	1280(H)*1024(V)
Horizontal Resolution	720P
Viewing Angle	Diagonal:91°/Horizontal:71°/Vertical:54°
Minimum Lux	0Lux(24 Pieces IR LED ON)
Vertical Frequency	NTSC:60Hz PAL:50Hz
Horizontal Frequency	NTSC:15.734KHz PAL:15.625KHz
Scanning System	Progressive
S/N Ratio	≥52dB
Electronic Shutter	NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
Lens	3.6mm IR Lens
White Balance	ATW
OSD	YES
BackLight Compensation	AUTO
AUTO Gain Control	ON
Defog	OFF/ON
DNR	OFF/ON
WDR	OFF/ON
Day&Night	AUTO/Color/BW/Ext
Available IR Distance	15M （49.2ft）
Gamma	0.45
Video Output	HD-AHD(720P)/ CVBS
Power Supply	DC12V±10%
Current consumption	320mA (MAX)
Dimension	155×69.4×79mm （6.1”×2.7×3.1”）
Weight	380g （13.4oz）
Storage Temperature	-30～+60℃
Operating Temperature	-30～+40℃
