TI-AHD9136M

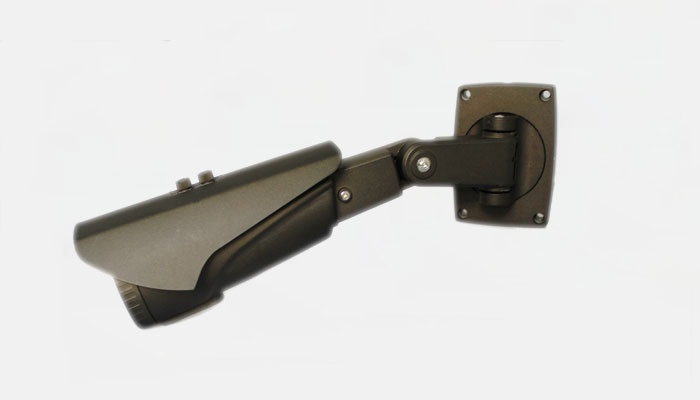

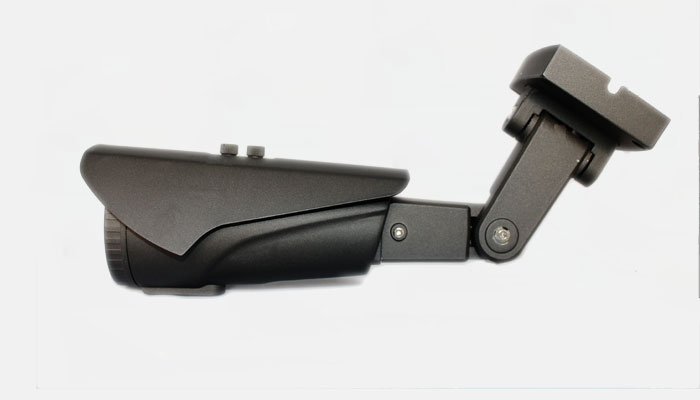

AHD 720 35M IR 3-Axis Bracket BulletCAMERA

Features

Parameters

Structure

Download

• 1/3” Sony 1.3Mega-pixel DIS

• 42pcs IR Array LEDs, IRup to 35M (Outdoor)

• 2.8-12mm Varifocal IR Lens,Viewing angle: Horizontal: 90°-28°

• Defog, WDR,3DNR,DSS

Item	TI-AHD9136M
IP Rating	IP66
Filter	Removable IR Cut Filter
Image Sensor	1/3” Sony 1.3Mega-pixel DIS
Pixels	1280(H)*1024(V)
Horizontal Resolution	720P
Viewing Angle	Horizontal: 90°- 28°
Minimum Lux	0Lux(42 Pieces IR LED ON)
Vertical Frequency	NTSC:60Hz PAL:50Hz
Horizontal Frequency	NTSC:15.734KHz PAL:15.625KHz
Scanning System	Progressive
S/N Ratio	≥52dB
Electronic Shutter	NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
Lens	2.8-12mm Varifocal IR Lens
White Balance	ATW
OSD	YES
BackLight Compensation	AUTO
AUTO Gain Control	ON
Defog	OFF/ON
DNR	OFF/ON
WDR	OFF/ON
Day&Night	AUTO/Color/BW/Ext
Available IR Distance	35M
Gamma	0.45
Video Output	HD-AHD(720P)/ CVBS
Power Supply	DC12V±10%
Current consumption	420mA (MAX)
Dimension	Φ68*306mm
Weight	775g （18.7oz）
Storage Temperature	-30～+60℃
Operating Temperature	-30～+40℃
