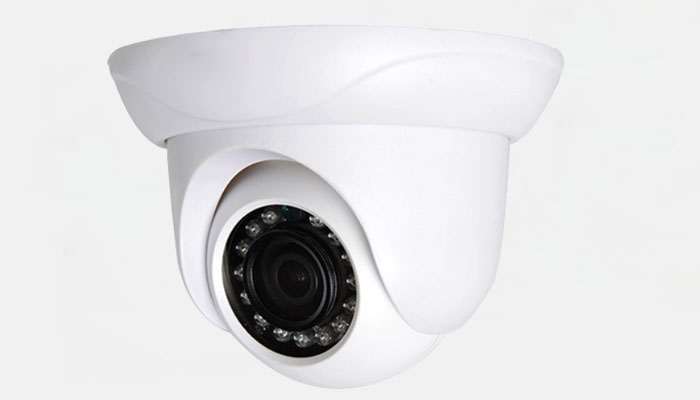

TI-AHD2124M
720P 20M IR 3 A-xis Dome Camera
• 1/3” Sony 1.3Mega-pixel DIS
• 24PCs Array IR LEDs, IR Range: 20M
• 3.6mm IR Lens,Viewing angle:Diagonal:91°/Horizontal:71°/Vertical:54°
• Feature: Defog, WDR, 3DNR, DSS
• Vandalproof,IP66
|
|
Item
|
TI-AHD2124M
|
|
IP Rating
|
IP66
|
|
Image Sensor
|
1/3” Sony 1.4Mega-pixel DIS
|
|
Pixels
|
1280(H)*1024(V)
|
|
Horizontal Resolution
|
720P
|
|
Viewing Angle
|
Diagonal:91°/Horizontal:71°/Vertical:54°
|
|
Minimum Lux
|
0Lux(12 Pieces IR LED ON)
|
|
Vertical Frequency
|
NTSC:60Hz PAL:50Hz
|
|
Horizontal Frequency
|
NTSC:15.734KHz PAL:15.625KHz
|
|
Scanning System
|
Progressive
|
|
S/N Ratio
|
≥52dB
|
|
Electronic Shutter
|
NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
|
|
Lens
|
3.6mm IR Lens
|
|
White Balance
|
ATW
|
|
OSD
|
YES
|
|
BackLight Compensation
|
AUTO
|
|
AUTO Gain Control
|
ON
|
|
Defog
|
OFF/ON
|
|
DNR
|
OFF/ON
|
|
WDR
|
OFF/ON
|
|
Day&Night
|
AUTO/Color/BW/Ext
|
|
Available IR Distance
|
10m（49.2ft）
|
|
Gamma
|
0.45
|
|
Video Output
|
HD-AHD(720P)/ CVBS
|
|
Power Supply
|
DC12V±10%
|
|
Current consumption
|
300mA (MAX)
|
|
Dimension
|
Φ119*85mm
|
|
Weight
|
350g
|
|
Storage Temperature
|
-30～+60℃
|
|
 |
|
|
|
