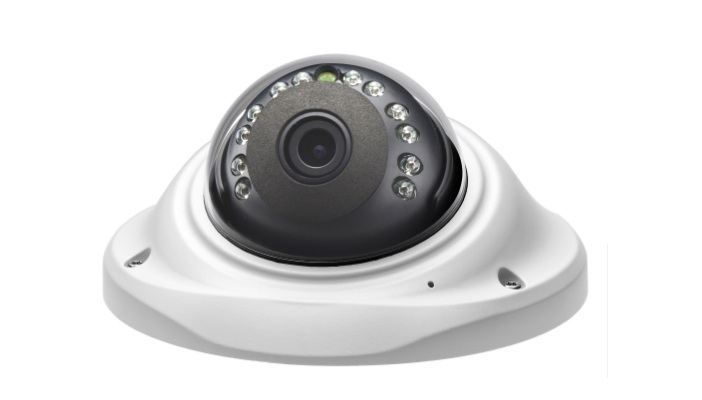

TI-AHD3225H
AHD 1080P Mini dome camera
·1/3"Sony Progressive Scan CMOS
·3.6mm Lens
·Full HD 1080P
·Video Transmission 300meters
·IR up to 10M
·3D DNR,dWDR,ICR,BLC,HLC,ATW
·Aluminium Alloy housing
|
|
CAMERA
|
|
Image Sensor
|
1/3"Sony Progressive Scan CMOS
|
|
Signal System
|
PAL/NTSC
|
|
Min. illumination
|
0.01Lux @ (F1.2,AGC ON),0 Lux with IR
|
|
0.05Lux @ (F1.4,AGC ON),0 Lux with IR
|
|
SN
|
≥50dB
|
|
Day & Night
|
ICR
|
|
Shutter Speed
|
PAL:1/50-1/50000 NTSC:1/60-1/60000
|
|
Wide Dynamic Range
|
dWDR, OFF/ON(Level 0-8)/Auto
|
|
Digital Noise Reduction
|
2D/3D
|
|
Lens
|
3.6mm
|
|
IR LED
|
12pcs
|
|
IR Wavelength
|
850nm
|
|
IR distance
|
10m
|
|
|
|
Effective Resolution
|
1920x1080
|
|
Frame
|
PAL:25fps ,NTSC:30fps
|
|
White Balance
|
ATW/AWC-SET/Indoor/Outdoor/MANUAL
|
|
Gain
|
Level 0-15
|
|
Light Compensation
|
BLC/HLC/OFF
|
|
VIDEO OUTPUT
|
|
Max Distance
|
>300m, 75-5
|
|
Output Interface
|
1ch HD Analogue
|
|
GENERAL
|
|
Power Supply
|
DC12V±10%
|
|
Power Consumption
|
4.5W(Max)
|
|
Operating Temperature
|
-10℃~+55℃
|
|
Operating Humidity
|
0% - 85% RH
|
|
Ingress
Protection
|
IP66
|
|
Approvals
|
CE / FCC
|
|
Material
|
Aluminium Alloy
|
|
Product Dimensions
|
φ95*63mm
|
|
Product Weight
|
300g
|
|
 |
|
|
|
