TI-CVI9049M

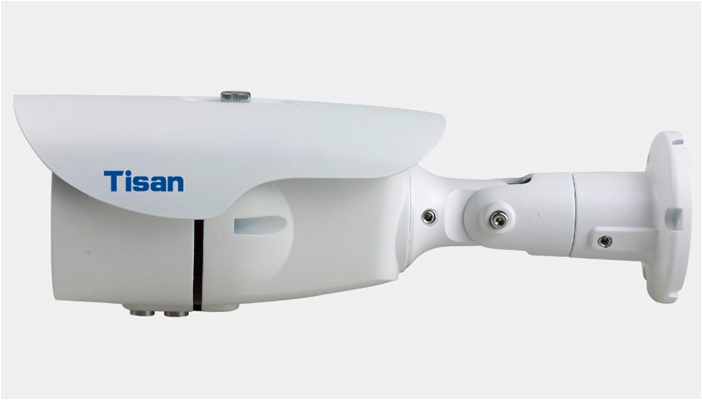

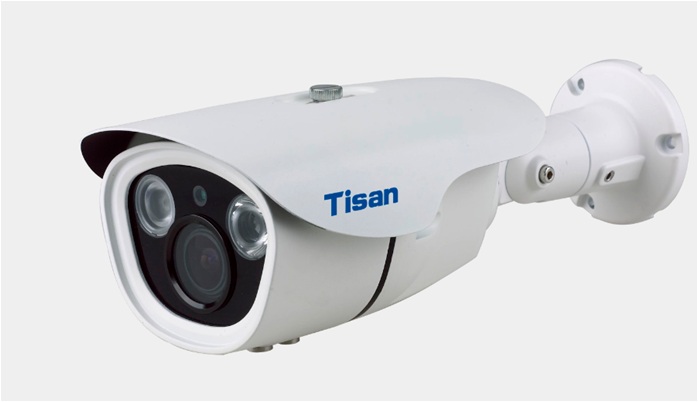

HDCVI 720P Varifocal 40M IR CAMERA
●1/3" 1.0Megapixel CMOS sensor
●25/30fps@720P
●High speed, long distance real-time transmission
●HD and standard definition switchable
●DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
●2.8-12mm varifocal lens
●Max. IR LEDs length 40m, Smart IR
●IP66, DC12V
|
|
Model
|
TI-CVI9049M
|
|
Camera
|
|
Image Sensor
|
1/3”
1.Megapixel CMOS
|
|
Effective
Pixels
|
1024(H)×720(V)
|
|
Electronic
Shutter
|
1/3s~1/100,000s
|
|
Video Frame
Rate
|
25/30fps@720P
|
|
Synchronization
|
Internal
|
|
Min.
Illumination
|
0.01Lux@F1.2(AGC
ON), 0Lux IR on
|
|
Video Output
|
1-channel
BNC HDCVI high definition video output/ CVBS standard definition video output
(Can switch)
|
|
Camera Features
|
|
Max. IR LEDs
Length
|
40m,
Smart IR
|
|
Day/Night
|
Auto(ICR)
/ Color / B/W
|
|
Noise
Reduction
|
2D/3D
|
|
OSD Menu
|
Support
|
|
Lens
|
|
Focal length
|
2.8-12mm
lens
|
|
Mount Type
|
Φ14
|
|
General
|
|
Power Supply
|
DC12V±10%
|
|
Power
Consumption
|
Max
4.7W
|
|
Working
Environment
|
-30°C~+60°C
/ Less than 95%RH (no condensation)
|
|
Transmission
Distance
|
Over
800m via 75-3 coaxial cable
|
|
Ingress
Protection
|
IP67
|
|
Dimensions(W×D×H)
|
L268*W108*H90MM
|
|
Weight
|
690g
|
|
Material
|
Metal
|
|
|
|
|
|
