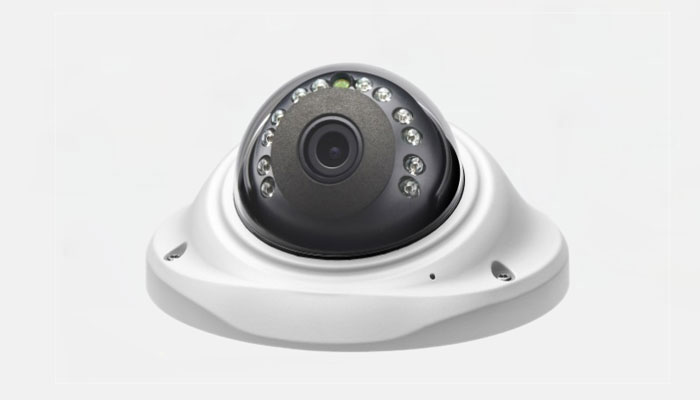

TI-CVI3012M
HDCVI 720P 10M IR MINI CAMERA
●1/3" 1Megapixel CMOS sensor
●25/30fps@720P
●High speed, long distance real-time transmission
●HD and standard definition switchable
●DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
●3.6mm fixed lens(2.8MM Lens optional)
●Max. IR LEDs length 10m, Smart IR
●IP65, DC12V
|
|
Model
|
TI-CVI3012M
|
|
Camera
|
|
Image Sensor
|
1/3” 1.0Megapixel CMOS
|
|
Effective Pixels
|
1305(H)×1049(V)
|
|
Electronic Shutter
|
1/3s~1/100,000s
|
|
Video Frame Rate
|
25/30fps@720P
|
|
Synchronization
|
Internal
|
|
Min. Illumination
|
0.01Lux@F1.2(AGC ON), 0Lux IR on
|
|
Video Output
|
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
|
|
Camera Features
|
|
Max. IR LEDs Length
|
20m, Smart IR
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
Noise Reduction
|
2D/3D
|
|
OSD Menu
|
Support
|
|
Lens
|
|
Focal length
|
3.6mm lens
|
|
Mount Type
|
M12
|
|
General
|
|
Power Supply
|
DC12V±10%
|
|
Power Consumption
|
Max 4.7W
|
|
Working Environment
|
-30°C~+60°C / Less than 95%RH (no condensation)
|
|
Transmission Distance
|
Over 800m via 75-3 coaxial cable
|
|
Ingress Protection
|
IP65
|
|
Dimensions(W×D×H)
|
Φ120×H63mm
|
|
Weight
|
270g
|
|
Material
|
Metal
|
|
|
|
|
|
