TI-A601

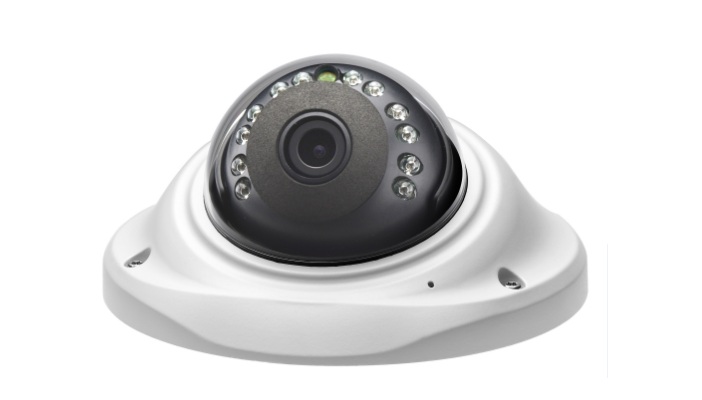

Mega-SONY 1000TVL 15M IR DOME Camera
• 1/3" SONY 1.3 Megapixel Sensor
• High resolution of 1000TVL
• Max. IR LEDs length 10m
• Build in 3.6mm/F2.0 Lens
• 3-Axis Vandalproof Dome Camera
• Day/Night(ICR), DNR(2D&3D), AWB, AGC, BLC, Picture Adjustment
|
|
Model
|
TI-A601
|
|
Camera
|
|
Image Sensor
|
1/3" SONY 1.3
Megapixel Sensor
|
|
Horizontal
Resolution
|
1000TVL
|
|
Max. IR LEDs
Length
|
10M
|
|
Signal System
|
PAL/NTSC
|
|
Effective
Pixels
|
1280（H）×960（V）
|
|
Electronic
Shutter
|
PAL:1/50s~1/100,000s,
10s~1/100,000s@Slow shutter, 512x
NTSC:1/60s~1/100,000s, 8s~1/100,000s@Slow shutter, 512x
|
|
Min.
Illumination
|
0.1Lux/F2.0
|
|
Lens
|
3.6 mm @ F2.0
|
|
Lens Mount
|
M12
|
|
Synchronization
|
Internal Synchronization
|
|
Video Output
|
1Vp-p Composite Output
(75Ω/BNC)
|
|
S/N Ratio
|
More than 62 dB
|
|
Menu
|
|
Noise
Reduction
|
3D
|
|
Backlight
Compensation
|
BLC
|
|
White Balance
|
Auto
|
|
Gain Control
|
Auto
|
|
S/N Ratio
|
More than 65 dB
|
|
D/N Mode
|
Auto(ICR) / Color / B/W
|
|
Language
|
English/Chinese
|
|
General
|
|
Operating
Conditions
|
(-10 °C - 60 °C (14 °F -
140 °F)
Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12 V DC ± 10%
|
|

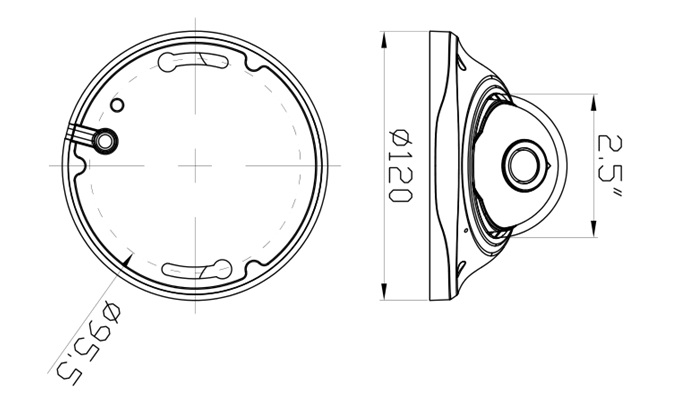

Dimension
|
Φ106×H54mm
|
|
Weight
|
260g
|
|
 |
|
|
|
