TI-NW804
4CH Wireless NVR KIT
*2.4G Wireless NVR KIT
*4CH playback simultaneously
*Support WIFI(IEEE802.11b, IEEE802.11g, IEEE802.11n )
*1 SATA HDD, MAX Capacity 4TB HDD
*1/4" CMOS，36pcs，3.6mm Lens
*0.3lux(50IRE@F1.2)/IR 0Lux
|
|
Wireless NVR Specification
|
|
Dual Stream
|
Each channel can set
|
|
Video Standard
|
30fps/960P(1280×960)/720P(1280×720)30fps
|
|
Monitoring Image
Quality
|
1080P(1920×1080) /
960P(1280×960)/720P(1280×720)
|
|
Image Motion
Detection
|
Each screen can set
mutiple detection areas and set 6-level sensitivity
|
|
Image Playback
Quality
|
4CH playback
simultaneously
|
|
Recording Mode
|
Support manual ,
auto, dynamic detection, alarm trigger record mode
|
|
Backup Way
|
Support U disk, USB
mobile HDD, USB DVD-RW, network storage and backup
|
|
Operation Way
|
Mouse
|
|
Recording Storage
|
Local HDD, network
|
|

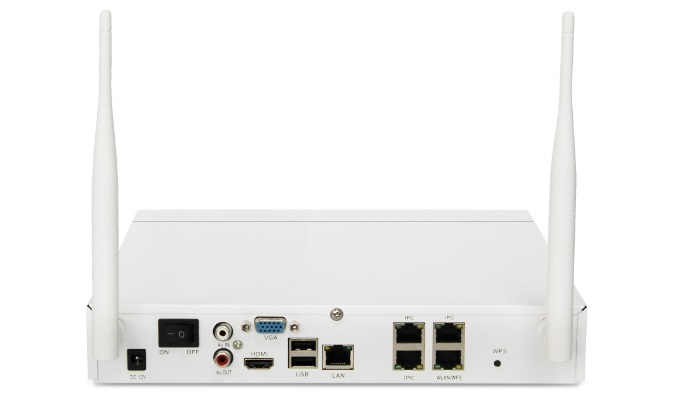

External Ports
|
|
Video Input
|
4×(1280*720/1280*960)
IP camera
|
|
Audio Input
|
1ch network audio
input
|
|
Video Output
|
1ch VGA+1ch HDMI
|
|
Audio Output
|
1ch RCA Output
|
|
Network Port
|
1 RJ45,10M/100M
self-adaptive LAN port,3 for IPC using directly,1 for conecting WFS/WLAN
|
|
USB Port
|
3 USB 2.0 ports
|
|
|
|
Wireless Port
|
WIFI(IEEE802.11b,
IEEE802.11g, IEEE802.11n )
|
|
HDD
|
1 SATA HDD, MAX
Capacity 4TB HDD
|
|
Mobile Surveillance
|
Support(
iPhone,Android) smart phone
|
|
Power Supply
|
DC12V/2.6A
|
|
Working Condition
|
-10°C~+55°C,
10%-90%
|
|
Dimension
|
260mmX240mmX43mm
|
|

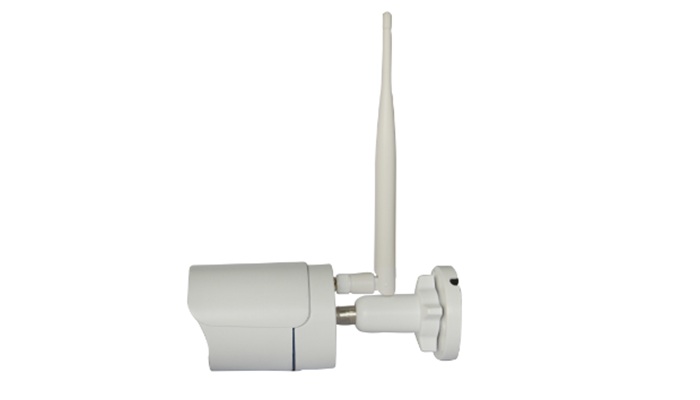

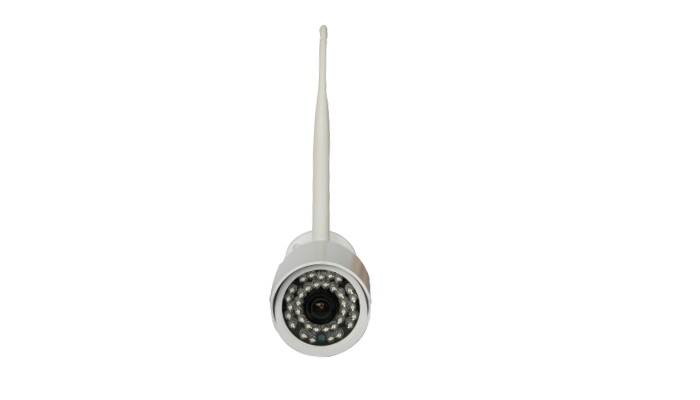

Camera Specification
|
|
Sensor Type
|
1/4" CMOS
|
|
Lens
|
36pcs，3.6mm
Lens
|
|
Image Size
|
1280*720/720*480/640*480/320*240
|
|
Minimum Illumination
|
0.3lux(50IRE@F1.2)/IR
0Lux
|
|
Video Frame Rate
|
30fps/s
|
|
Protocol
|
TCP/IP,HTTP,DHCP,DNS,RTP/RTSP,PPPoE,FTP,SMTP,NTP
|
|
Mobile access
|
P2P, Support
andriod,iphone
|
|
Wireless protocol
|
IEEE802.11b,
IEEE802.11g, IEEE802.11n
|
|
|
|
|
|
