Introduction

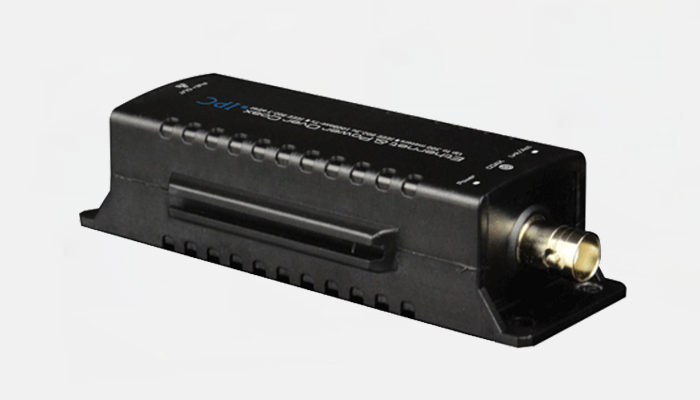

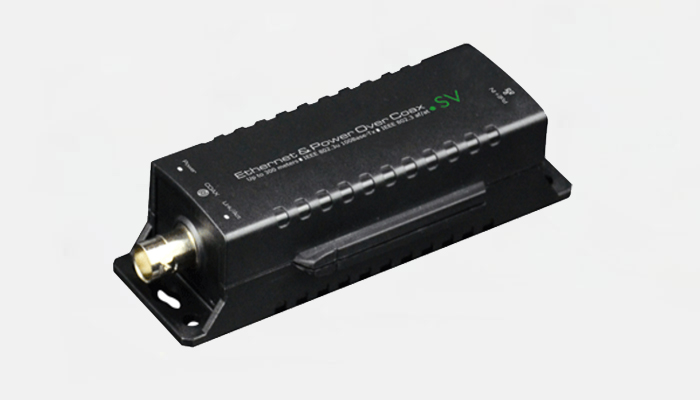

TI-VEPOC01 is an Ethernet extender which transfers data and power by Ethernet cable or coaxial cable. It consists of SV and IPC Pieces. T

his product is specially designed to meet the power supply in the long-distance HD IP transmission and accord with IEEE 802.3af/at.

This device can transfer the data and power up to 300m through the coaxial cable, but data latency is less than 0.01ms.

The structure designing of built-in splicing slot on both sides and magnetic attraction as well as hanger on the bottom enables

multiple installation methods of splicing, adsorption , and wall-mounting. Therefore it is a cost-effective choice for

the HD network surveillance system, transmission and application of the IOT, a quick migration solution from existing analog system to full digital system.

Feature

◆Transfer 60Mbps bi-direction Ethernet signal via coaxial cable, and the transmission distance of Ethernet and power signals up to 300m;
◆Support IEEE 802.3u 100Base-TX,IEEE802.3 af/at standard;
◆Low delay rate, less than 0.01ms; Real-time video surveillance;
◆Plug-and-play, no other software and transfer agreement required;
◆Built-in splicing slot, with magnet and hanger, unique and integrated design, splicing, desktop and wall-mounted installations available, which suits in all kinds of engineering installation
