Introduction
TI-7301EPOC is an Ethernet extender specially designed to solve problems
of short HD IP transmission distance and transmission medium
conversion.

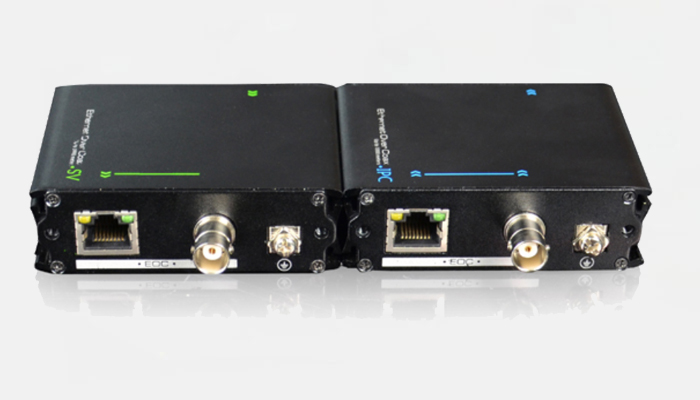

This Ethernet extender consists of one SV-Unit and one
IPC-Unit. It can transfer Ethernet signal of IPC-Unit to carrier signal
through coaxial cable or
network cable and extend to SV-Unit, then
transfer carrier signal to Ethernet signal and transmit power
synchronously.In actual engineering project,
by means of point-to-point,
it can transmit Ethernet signal up to 500m via coax cable while
transmit Ethernet signal up to 400m via network
cable with latency less
than 1ms. Compared with other brands Extender, TI-7301EPOC supports af/at standard
and features longer
transmission distance, superior lightning
protection and anti-interference ability,delicate design and high
performance.
It is an ideal solution for long distance signal
transmission in HD IP surveillance and network upgrading projects.
Feature

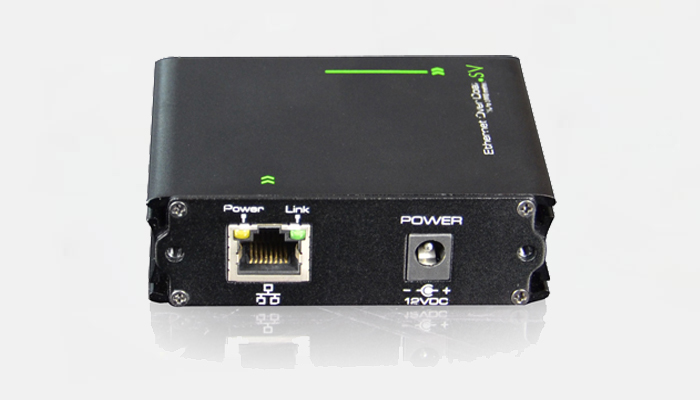

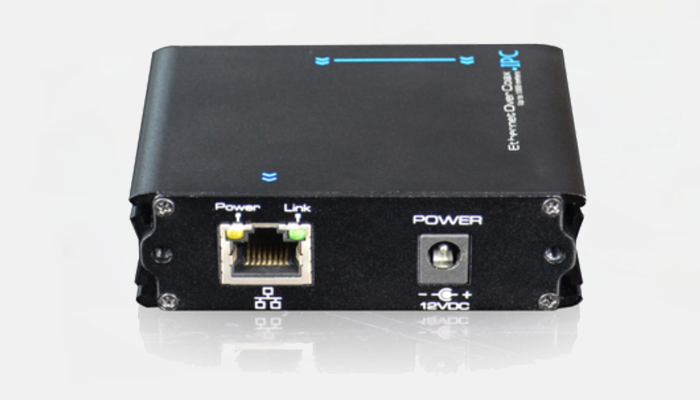

◆ The equipment consists of two parts: SV-Unit and IPC-Unit. SV-Unit
has 48-57V DC port, one PoE input port and two output ports: BNC and
RJ45; IPC-Unit has two input ports: BNC and RJ45, one PoE output port;
◆ Adopt advanced transmission and power supply technoloy, can transmit
Ethernet signal and power signal up to 500m through coaxial cable and
transmit Ethernet signal and power signal up to 400m through network
cable;
◆ Ethernet delay less than 1ms; meet point to point application;
◆ Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at;
◆ Protection: excellent circuit isolation protection, superior product
anti-thunder, anti-satific and anti-interference ability;
◆ Appearance: soild and delicate, meet MIT rack installation standard, working temperature: 0℃～55.
◆ Installation: Plug-and-play, no setting required.
|
