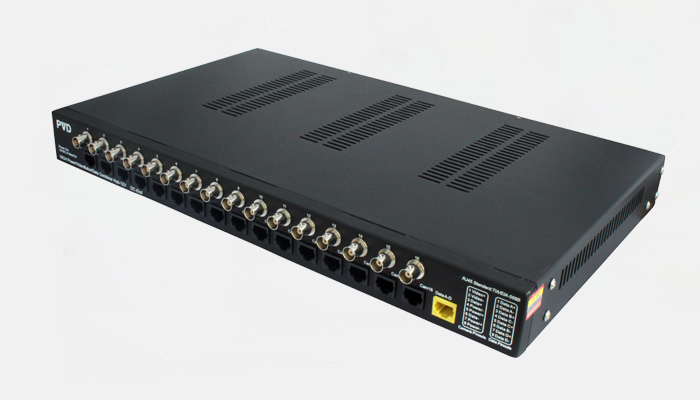

Product Overview:

The Combiner Hub is advanced device that combines video and camera power over a single 16-pair UTP cable to simplify CCTV installations in

a structured wiring environment.The Combiner Hub has built-in DC12V power supply. Each camera power output is equipped afuse self-resetting with for extra protection.

At the camera end the single channel PV video balun combiner provides video and power on separate outputs.The Combiner Hub should be installed at the "head-end". The passive transceiver video connections are through BNC
connectors and Coax cables to the DVR. All equipment follows industry-standard TIA/EIA 568B pinouts. The Combiner Hub is an ideal CCTV component for a structured cabling environment.

Features:

1, Combines video, power into a single RJ-45 4-pair cable
2, Use with the power-video transmitter at the camera

3, Isolated camera power , 1 A max per channel

4, Built-in passive transceivers with surge protection

5, 60 dB cross talk and noise immunity

6, Designed for structured wiring applications

Technical Specifications

1, Video Format NTSC, PAL, SECAM

5, CMRR 60 dB

6, Power fused at 1.5A max/CH.
7, Connectors Video: BNC
8, UTP: RJ-45
9, Power: Build-in AC90-240V to DC12V converter

Environmental

1, Humidity:0 to 95%, non-condensing
2, Temperature:Operating: -10°C to +70°C
3, Storage: -30°C to +70°C

Wire Type

1, The PV system operates well with Cat5 or better
2, UTP wire,24 AWG(0.5mm)or thicker.
3, Low voltage camera power video may be sent within same wire bundle.
4, Do not use shielded twisted-pair wire.
5, Do not use un-twisted wire.
6,Do not run 24V/28VAC within same wire bundel with
telecom or other datacom signals

Power-Distance Chart

Using PV prodcuts, cameras can be powered at extended distances, please refer to the chart below for more information.
