1.0 Introduction

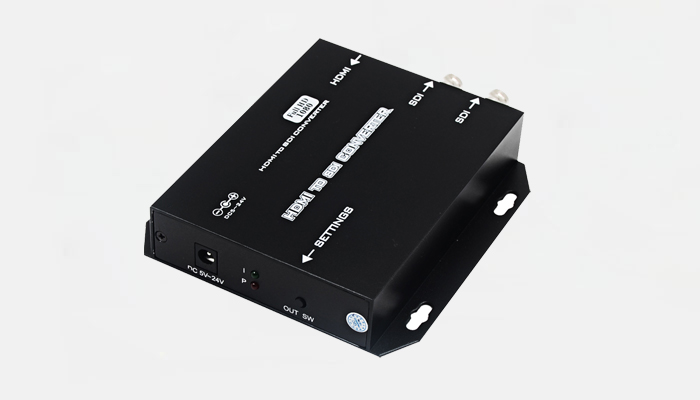

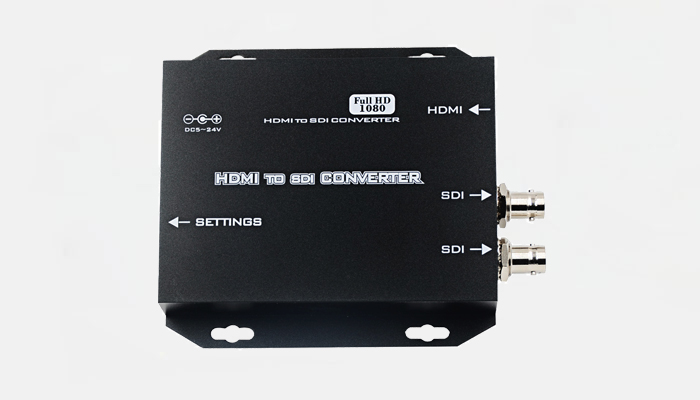

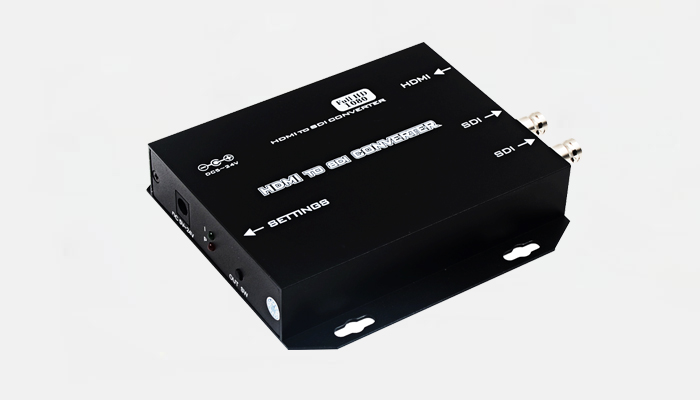

The HDMI
to SDI Converter allows HDMI signals to be shown on SDI display while ensuring
high bit rates of 2.970 Gbit/s to give you high resolution signal without any
loss.
It is easier to convert high
def HDMI signal with audio to SDI for long distance transmission and display
your work on SDI display.
2.0 Features
2.01 Support HDMI1.3 HDCP1.1/1.2
2.02 Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s,
2.970/1.001 Gbit/s,
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
2.03 Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,
1080i@50/59.94/60,
1080p@23.98/24/25/29.97/30/50/59.94/60.
2.04 Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE292M, at bitrates of 1.485 Gbit/s or
1.485/1.001 Gbit/s)
1080p to3G-SDI
(SMPTE424M/425M-AB, at bitrates of 2.970 Gbit/s
and 2.970/1.001 Gbit/s)
2.05 Supports SDI output distance up to 100 meters (3G-SDI), 200 meters
(HD-SDI), or 300 meters (SD-SDI)
|
