1.0 Introduction

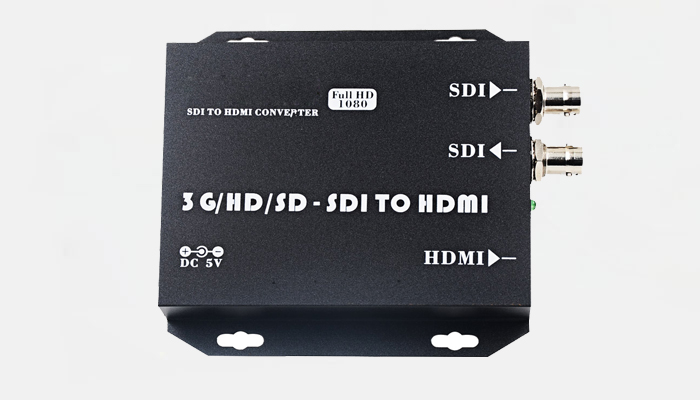

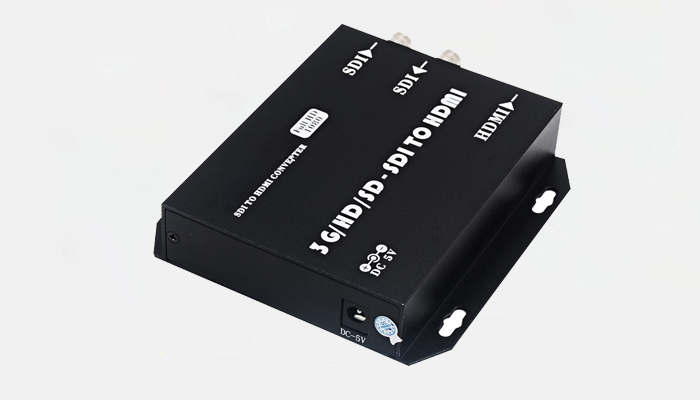

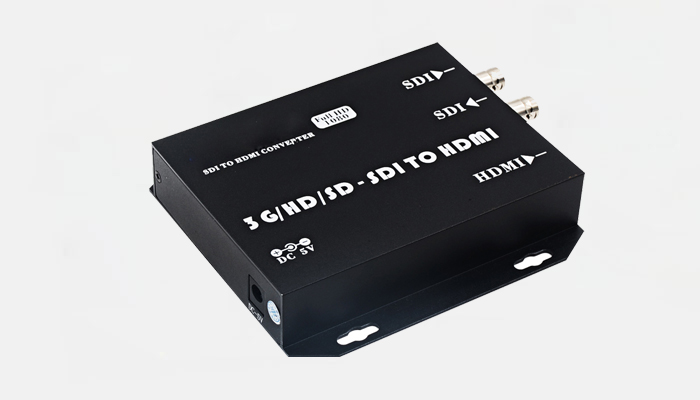

The SDI to HDMI converter allows
SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays
while
ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission
without any loss.
For professionals this means that it is now easier to
distribute and extend your 3G SDI signal while
giving you the ability to
display your work on HDMI displays thanks to the built in HDMI converter.
Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy
both SDI and HDMI displays at the same time.
2.0 Features
1) Operation at 2.970Gbit/s,
2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s
and 270Mbits/s.
2)Supports SMPTE 425M (Level A and
Level B), SMPTE 424M,
SMPTE 292M,SMPTE 259M-C.
3)Equalized and re-clocked loop
output• Integrated audio de-embedder for a
maximum of 8 channel, 48 kHz audio.
4)Auto video mode detection (3G/SD/HD)
5)Conversion from SMPTE 425M level B
to Level A 1080p 50/59.94/
60 4:2:2 10-bit.
6)Connect with other units to extend
your signal over long distances.
7)Simultaneous display with SDI and
HDMI signals
8)Supports signal transmission
distances of up to 300M for SDI signals,
200M for HD signals and 100M for 3G signals
|
