TI-NP104
Network 1.4Megapixel Pinhole Camera
● 1/3” SONY Exmor Progressive Scan CMOS Sensor
● 1.3 Megapixel, 30fps@1280*720
● 3.7mm lens, 0.05 Lux
● Support PROFILE S, GB/T28181, FTP, RTSP, UPnP etc.
● Support Dual-Stream, Mobile Surveillance, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
● Audio & Alarm I/O, SD card slot, RJ45,PoE,DC-12V/AC 24V
● Option: MIC
|
|
Model
|
TI-NP104
|
|
Hardware
|
|
SOC
|
Hi3518A
|
|
Image Sensor
|
1/3" SONY progressive scan Exmor CMOS
|
|
Effective Pixels
|
1280(H)×1024(V)
|
|

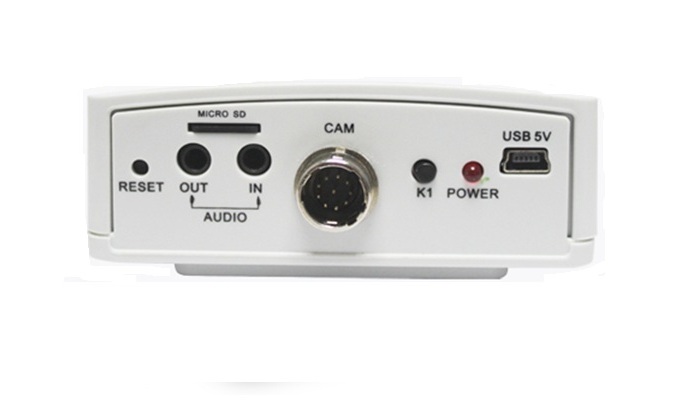

Interface
|
|
Optical lens
|
Interfaces
|
Pinwhole
|
|
Iris
|
Fixed Iris
|
|
Focal Length
|
3.7mm
|
|
Audio Talkback
|
1CH MIC 3.5mm AV interface
|
|
Audio Output
|
1CH Speaker 3.5mm AV interface
|
|

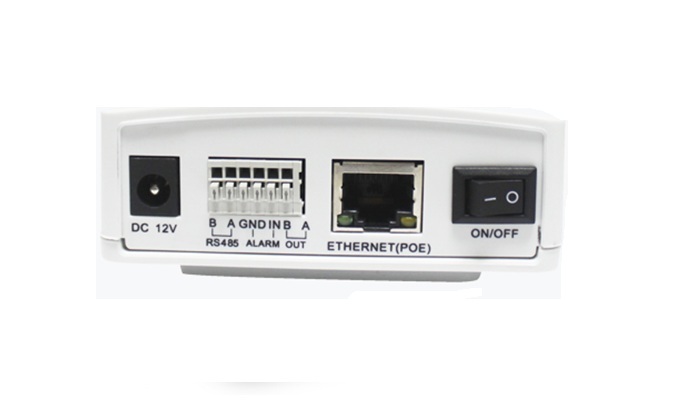

Network Interface
|
Lan
|
10/100M BASE-TX,RJ-45 connector
|
|
RS485
|
RS485 port optional
|
|
Alarm I/O
|
1ch Alarm input,1ch alarm output
|
|
Memory Slot
|
Micro SD Card Slot, 32GB
|
|
Audio&Video encoding
|
|
Video Compression
|
H.264 Main Profile; MJPEG Baseline
|
|
Resolution
|
Main Stream
|
1280*720 ;1~25fps（Adjust）
|
|
Sub Stream
|
704*576/640*480/640*352/320*240 ;1~25fps（Adjust）
|
|
Video Bitrate
|
30Kbps～16Mbps,Supports CBR/VBR
|
|
Title OSD Settings
|
Supports channel name, date, and video stream information overlay;
|
|
OSD location is adjustable
|
|
Privacy Mask
|
4 configurable regions
|
|
Image Orientation
|
image flip and mirror
|
|
Auto Image Control Functions
|
Auto Exposure Control (AEC); Auto White Blance (AWB);Auto
Gain Control(AGC)
|
|
Manual Image Controls
|
Color saturation, hue, gamma, contrast
sharpness (edge enhancement),
|
|
Others
|
Anti Fogging/Anti Trembling/IR Detection/IRIS/
|
|
Audio Compression
|
G.711A/G.711U/G.726
|
|
Two Way Audio
|
support
|
|
Data transmission and storage
|
|
Data storage
|
Video and Image
|
|
Recording
|
Recording set up to record by Auto or
manual (motion and alarm trigger, schedule)
|
|
Alarm Output
|
FTP,E-mail
|
|
Network protocol
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、
|
|
PPPOE、SMTP、UPNP
|
|
Wireless protocols(-W)
|
-------------------------------------------------
|
|
ONVIF protocols
|
Support PROFILE S
|
|
Remote View
|
PC
|
IE 6.0 Above; firefox;Google Chrome
|
|
Mobile Phone
|
Suport Windows Mobile,Symbian,iPhone, Android system
|
|
Max. User Access
|
5 users
|
|
General Parameters
|
|

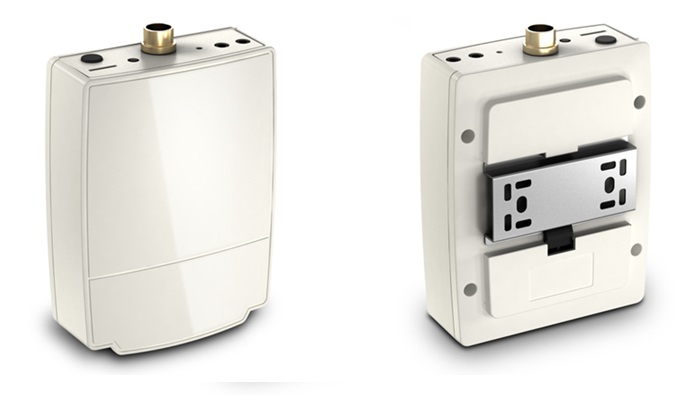

Environmental Casing
|
Aluminum alloy Housing, indoor use
|
|
Installation
|
Different bracket optional
|
|
Operating Temperature
|
-10 °C ~ 50 °C
|
|
Operating Humidity
|
0% -85% RH
|
|
Power supplier
|
DC12V±10%
|
|
POE
|
Support
|
|
Power Consumption
|
<3W
|
|

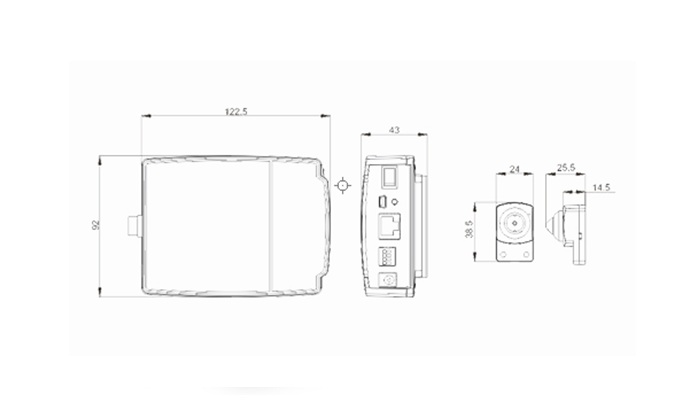

Dimension
|
L122.5mm×W92mm×H43mm
|
|
Weight
|
350g
|
|
|
|
|
|
